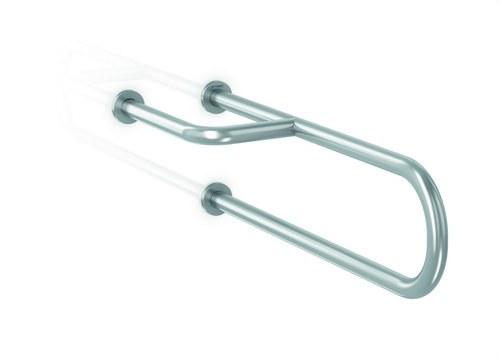

Fixed Support Bar 3 Anchors Satin Stainless Steel Left

The fixed support bar with 3 anchors, model GW11 10 04 01 by Genwec, is a robust and reliable solution designed to provide secure support in bathrooms and other areas where additional assistance is required. This bar is made from AISI 304 stainless steel, known for its high corrosion resistance and durability, making it an ideal choice for damp environments.

With a design that allows installation in the left position, this bar is composed of two stainless steel tubes with a 32 mm diameter and 1.5 mm thickness, bent into “U” and “L” shapes respectively. This structure ensures a secure and comfortable grip for users, providing the necessary support to stand up or remain standing.

The bar's three support points are made from AISI 304 stainless steel sheet with a thickness of 2.5 mm and a diameter of 77.5 mm. These supports are fixed to the ends of the tube with screws, ensuring a firm and secure connection. Each support features three holes of Ø6.5 mm, facilitating the attachment of the bar to the wall.

The assembled set has a satin finish, which not only enhances the product's aesthetics but also offers adequate resistance to daily wear. The bar is designed to be securely anchored to a hollow brick wall using 9 nylon plugs of 8x50 mm and AISI 304 stainless steel screws of 5x60 mm, ensuring its stability and load capacity.

This support bar can withstand a maximum static and dynamic force of 120 kg, ensuring user safety and confidence during use.

Technical Specifications:

• Tube Material: AISI 304 stainless steel, Ø32 mm, thickness 1.5 mm
• Supports: AISI 304 stainless steel, 2.5 mm thick and 77.5 mm in diameter
• Rosettes: Cover screws, made from AISI 304 stainless steel
• Three holes per support of Ø6.5 mm for firm attachment
• Finish: Satin, corrosion-resistant
• Maximum supported force: 120 kg (static and dynamic)
• Total dimensions: Adapted to specific design

This fixed support bar is perfect for accessible bathrooms, hospitals, care centres, and any installation requiring secure and durable support. Its robust and aesthetically pleasing design makes it an ideal choice for enhancing user safety and comfort in any environment.
