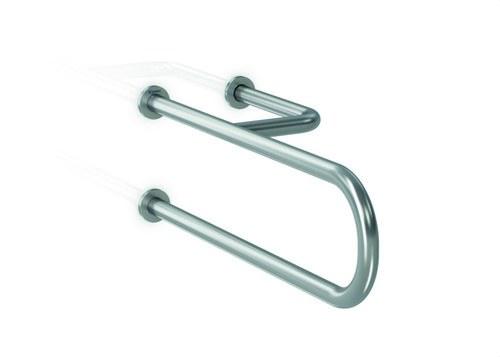

Fixed Support Bar 3 Anchors Satin Stainless Steel Right

The fixed support bar with 3 anchors, model GW11 11 04 01 by Genwec, is designed to provide safety, robustness, and strength in spaces that require additional assistance for people with reduced mobility. This model is intended to be installed with the short arm on the right, making it ideal for bathrooms, showers, or any area needing an additional support bar. Its design is crafted to withstand both static and dynamic forces, ensuring stability and durability with frequent use.

Design and Materials

The bar is made from AISI 304 stainless steel, a material renowned for its high resistance to corrosion and durability. This makes it an ideal choice for humid environments such as bathrooms or showers. The bar has a diameter of 32 mm and a thickness of 1.5 mm, providing excellent robustness and a comfortable, secure grip for the user.

The design of the bar consists of two tubes bent into "U" and "L" shapes, providing three support points. The wall mounts, also made from AISI 304 stainless steel with a thickness of 2.5 mm and a diameter of 77.5 mm, are equipped with screw-covering rosettes, ensuring not only a secure installation but also enhancing the product's aesthetics by concealing the fixing points.

Installation and Resistance

This model is designed to be installed on hollow brick walls. The bar is secured using 9 AISI 304 stainless steel screws of 5x60 mm and 9 nylon plugs of 8x50 mm (included). This anchoring system ensures a firm and secure fixation, supporting a maximum static and dynamic force of 120 kg.

The installation is straightforward, and once mounted, the bar provides a reliable and sturdy support point, ideal for environments where safety is a priority. Additionally, its anti-vandal design ensures the bar maintains its integrity and functionality in public or high-traffic environments.

Finish and Maintenance

The satin finish of the bar not only gives it an elegant and modern appearance but also makes it easy to clean and maintain. The AISI 304 stainless steel, with its satin finish, is highly resistant to corrosion, ensuring the bar retains its appearance and functionality for many years. This material also simplifies the cleaning of the product, which is essential in environments requiring high hygiene levels, such as public bathrooms, hospitals, or care homes.

Applications

This model of fixed support bar is specifically designed for bathrooms and showers but can be used in any other space requiring additional support to enhance people's safety. It is ideal for installation in hospitals, care homes, hotels, sports facilities, or public bathrooms, where safety and accessibility are paramount.

Product Specifications

• Material: AISI 304 stainless steel
• Tube diameter: 32 mm
• Tube thickness: 1.5 mm
• Supports: Three supports made of AISI 304 stainless steel, 2.5 mm thick and 77.5 mm in diameter
• Rosettes: Screw-covering rosettes in AISI 304 stainless steel
• Screws: 9 AISI 304 stainless steel screws of 5x60 mm and 9 nylon plugs of 8x50 mm
• Maximum static and dynamic force supported: 120 kg
• Finish: Satin
• Anchoring: Bar anchored to the wall with three support points
• Weight supported: 120 kg

Key Advantages

• Robust design: Thanks to its construction from AISI 304 stainless steel and its 3-point support design, this bar is extremely durable and can support up to 120 kg of static and dynamic weight.
• Satin finish: The satin finish not only adds a touch of elegance but is also easy to clean and maintains its appearance over time, even in humid environments.
• Easy and secure installation: Includes the screws and plugs needed for a firm fixation on hollow brick walls. Once installed, the bar offers a stable and reliable support point.
• Anti-vandal: Its robust and resistant design makes it an excellent choice for public and high-traffic areas, where durability and safety are essential.
• Versatile application: Ideal for bathrooms, showers, and any space needing an additional support point, in hospitals, care homes, hotels, or public bathrooms.
