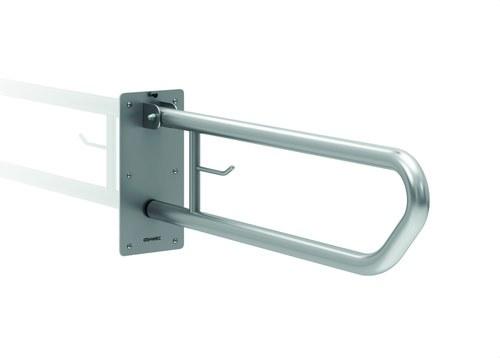

Foldable Support Rail 600mm with Satin Stainless Steel Toilet Roll Holder

The foldable support bar with toilet roll holder model GW11 08 04 01 by Genwec is a robust and versatile solution, ideal for enhancing accessibility and safety in adapted bathrooms or accessible spaces. With a length of 600 mm, this foldable bar offers firm and reliable support that can be folded away when not needed, optimising space and allowing for greater flexibility in the environment.

Made from AISI 304 stainless steel, this bar stands out for its durability and resistance to corrosion. The 32 mm diameter and 1.5 mm thickness tube ensures solid and secure support for the user, while the satin finish adds an elegant touch and ensures greater resistance to the elements, making it an excellent choice for humid environments such as bathrooms.

The progressive brake system incorporated in this bar is a key feature that ensures smooth and controlled movement when the bar is folded down, preventing sudden drops that could endanger the user. This mechanism provides greater safety, especially for people with reduced mobility who rely on the bar as a primary support.

The design of the bar includes an integrated toilet roll holder, which increases the product's functionality by offering accessible support for toilet paper without the need for additional installations. This toilet roll holder is located on the intermediate crossbar, making it easy to use and adding convenience for the user.

The wall support is made from a 3 mm thick AISI 304 stainless steel plate, and the assembly is reinforced with two brackets welded by TIG welding, ensuring a firm and durable structure. The six Ø10.5 mm holes in each support allow for solid and stable wall mounting, providing secure fixation even in high-use environments. Installation is carried out using 10x60 mm nylon plugs and 8x70 mm AISI 304 stainless steel hex head screws, ensuring proper anchoring in hollow brick walls or other materials.

This model is compliant with ADA standards (Americans with Disabilities Act), ensuring that it meets accessibility standards for people with reduced mobility, significantly improving the safety and functionality of the bathroom.

The bar is capable of supporting a maximum static and dynamic force of 120 kg, ensuring its reliability in situations of frequent use or in public installations.

Technical Specifications:

• AISI 304 stainless steel tube of Ø32 mm and 1.5 mm thickness.
• Support and hinge in AISI 304 stainless steel of 3 mm thickness.
• Six holes per support of Ø10.5 mm for secure wall fixation.
• Progressive brake system for controlled folding.
• Integrated toilet roll holder in the intermediate crossbar.
• Satin finish resistant to corrosion.
• Maximum load capacity: 120 kg.
• Dimensions: 300 x 100 x 600 mm.
• ADA compliance for accessibility.

This product is ideal for installations in accessible bathrooms, whether in private homes, hospitals or public facilities, where maximum robustness and safety are required. The combination of its functional design with its high durability makes the 600 mm foldable support bar an excellent choice for improving user accessibility and comfort.
