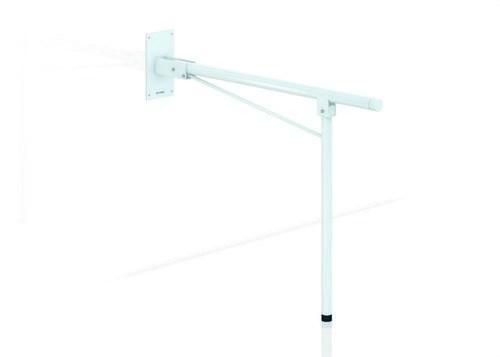

Folding support rail with leg 800mm satin stainless steel

The fold-down support bar with leg, model GW11 60 04 01 from Genwec, is a versatile and secure solution, ideal for environments where additional support is needed, such as in bathrooms, hospitals, or accessible facilities. Made from AISI 304 stainless steel, this bar combines durability and strength, making it suitable for use in damp and high-traffic areas.

With a length of 760 mm, this bar is designed to be foldable and has a vertical swivel that allows usage in various positions. The bar is composed of two stainless steel tubes with a diameter of 32 mm and a thickness of 1.5 mm. One of the tubes is intended for the user's grip, while the other acts as a support leg. Both tubes are connected by brackets and screws, which function as a swivel axis, providing robust and secure support.

The bar includes a foldable leg that can be used for additional support. This leg features a vertical locking system, ensuring the bar remains in place during use. The wall support is made of a 3 mm thick AISI 304 stainless steel sheet and a bracket of the same material, ensuring the stability of the assembly through TIG welding.

The bar has four holes in the support that allow for secure wall mounting using 6 nylon anchors of 8x35 mm and AISI 304 stainless steel screws of 6x50 mm. This installation guarantees a maximum static and dynamic force of 120 kg, ensuring user safety during use.

The satin finish not only provides a modern appearance but also contributes to the bar's resistance to corrosion and wear. Additionally, this product complies with the American ADA standards for barrier-free access, making it ideal for accessible installations.

Technical specifications:

• Tube material: AISI 304 stainless steel, Ø32 mm, thickness 1.5 mm
• Leg: Foldable with vertical locking
• Supports: AISI 304 stainless steel, 3 mm thick
• Welding: Full TIG without filler
• Finish: Satin, corrosion-resistant
• Maximum force supported: 120 kg (static and dynamic)
• Total dimensions: 900 x 100 x 760 mm

This fold-down support bar is the perfect choice for those seeking a solution that combines functionality, robustness, and attractive design. Its ability to provide secure support and ease of use makes it an ideal option for enhancing accessibility and safety in any environment.
