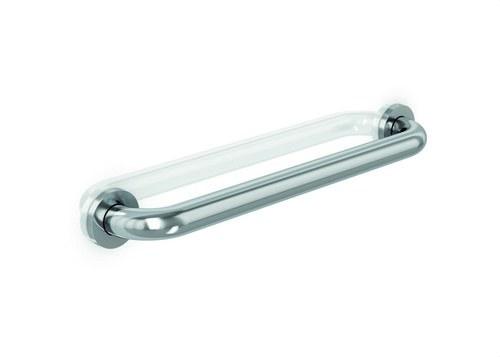

Straight Support Bar 300mm Polished Stainless Steel

The 300 mm straight support bar from the GW11 01 04 02 model by Genwec is a robust and elegant solution designed to enhance safety in bathrooms, showers, and other accessible facilities. Made from AISI 304 stainless steel, this bar offers the perfect combination of sturdiness and corrosion resistance, ensuring a long service life, even in humid or high-use environments.

With a total length of 300 mm between the support centres, this bar can be installed both horizontally and vertically, allowing it to adapt to the specific needs of each space. Its design features two support points that ensure a firm and secure attachment to the wall. The tube, with a 32 mm diameter and 1.5 mm thickness, also made from AISI 304 stainless steel, provides a comfortable and stable grip, suitable for users who require additional support in their movements.

The bar's supports are constructed from AISI 304 stainless steel with a 2.5 mm thickness and 77.5 mm diameter, ensuring maximum strength and durability. Each support has three holes for wall attachment, enhancing the bar's stability and allowing it to support a static and dynamic load of up to 120 kg. To conceal the fixing elements, the bar includes screw cover rosettes made from stainless steel with a 0.5 mm thickness, which also contribute to a cleaner and more professional aesthetic.

The bar's shiny finish not only adds an aesthetic touch but also acts as an additional protection against corrosion, ensuring the product maintains its appearance and functionality over time. The 43 mm gap between the bar and the wall allows it to be compatible with ADA standards (Americans with Disabilities Act), ensuring it meets accessibility standards.

This bar is designed to be easy to install with the included six 8x50 mm nylon plugs and 5x60 mm AISI 304 stainless steel screws, providing secure attachment in hollow brick walls or similar materials.

Technical specifications:

• Material: AISI 304 stainless steel.
• Tube diameter: 32 mm.
• Tube thickness: 1.5 mm.
• AISI 304 stainless steel supports with 2.5 mm thickness and 77.5 mm diameter.
• Screw cover rosettes in AISI 304 stainless steel with 0.5 mm thickness.
• Three holes per support of Ø6.5 mm for wall mounting.
• Shiny finish, corrosion-resistant.
• Wall gap: 43 mm.
• Supports a maximum static and dynamic force of 120 kg.
• Compliant with ADA standards.
• Total dimensions: 300 mm in length between support points.

This anti-vandal support bar is perfect for any environment seeking to improve safety and accessibility without sacrificing design or durability. Ideal for accessible bathrooms in homes, hospitals, care centres, and other public or private spaces where safety is paramount.
