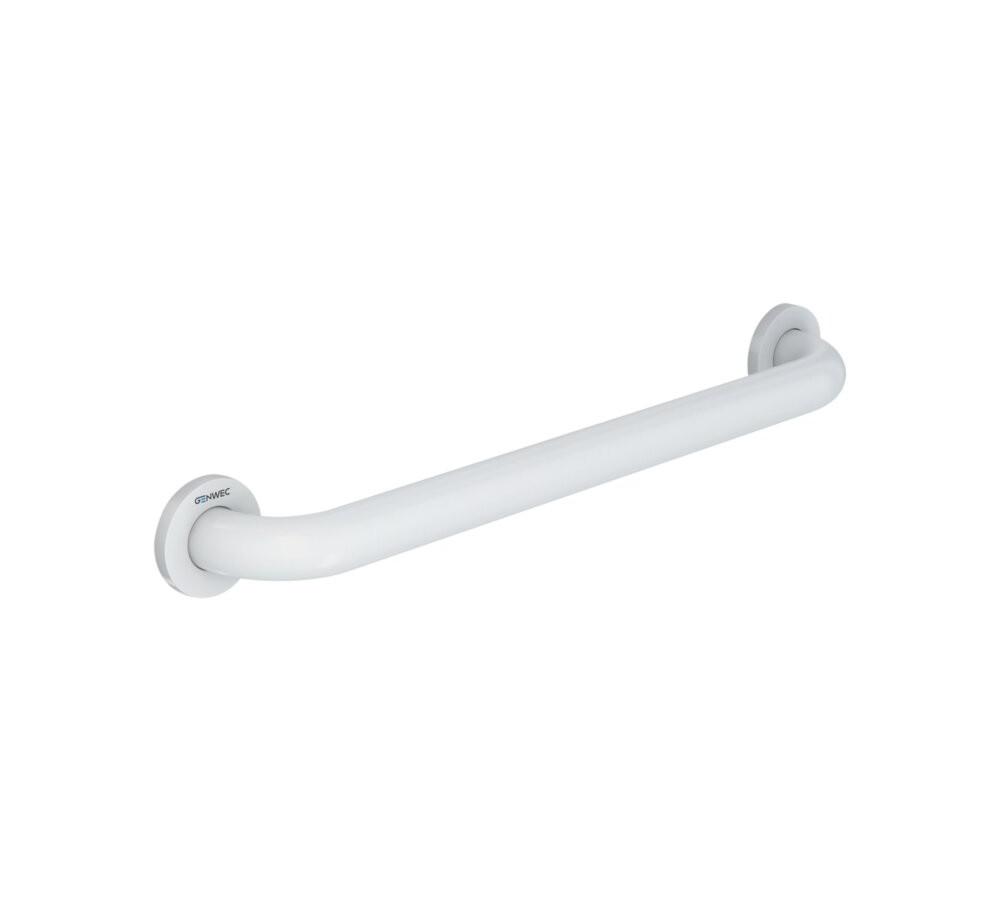

Straight Support Bar 400mm White Steel

The 400 mm straight support bar by Genwec, reference GW11 02 03 00, is designed to provide safety and stability in environments requiring additional support, such as bathrooms or showers. Made with high-quality materials, it is a robust and durable solution to enhance accessibility in both public and private spaces.

Design and Materials

This support bar is made from a carbon steel tube with anti-corrosion treatment and a white epoxy paint finish, which not only provides a clean and modern look but also ensures high resistance to corrosion and a long lifespan, even in humid environments. The tube of the bar has a diameter of 32 mm and a thickness of 1.5 mm, giving it the necessary robustness to withstand intensive use.

The two support points are made from 2.5 mm thick galvanised carbon steel sheet, ensuring the bar's firmness when fixed to the wall. Each support includes a screw cover rosette, also made from galvanised carbon steel, which not only conceals the screws but also adds an additional layer of protection and aesthetics, ensuring the bar maintains its clean and professional appearance.

Fixation and Strength

The bar is designed to be installed in a horizontal or vertical position, depending on the user's needs. It can be fixed to the wall using 6 AISI 304 stainless steel screws and 6 nylon plugs (included), ensuring a firm and stable installation. Once fixed, the bar can support a maximum static and dynamic force of 120 kg, making it a safe and reliable solution for individuals needing additional support in their daily environment.

The fixation system comprises three holes in each support of Ø6.5 mm, ensuring that the bar is well anchored to the wall, maintaining its stability and robustness over time.

Dimensions and Space

The length between support centres is 400 mm, making it ideal for smaller spaces where additional support is needed. The distance from the wall is 43 mm, complying with the American Architectural Barriers Act (ADA) standards, making it an accessible and ergonomic option for any user.

Applications

This support bar is perfect for installation in bathrooms, showers, public toilets, and other environments where safety and accessibility are paramount. Its design makes it suitable for both private and public settings such as hospitals, nursing homes, hotels, or bathrooms adapted for people with reduced mobility. The white epoxy finish provides a neutral and modern appearance, adapting to different decoration styles while ensuring easy cleaning and maintenance.

Key Advantages

• High durability: The bar is made from carbon steel with a white epoxy finish, ensuring its resistance to corrosion and making it perfect for humid environments like bathrooms or showers.
• Robustness: With a capacity to support up to 120 kg, this bar is suitable for individuals needing additional support to stand or move safely.
• Easy installation: The product includes the necessary screws and nylon plugs for a firm and secure installation on brick walls, ensuring quick and efficient assembly.
• Adaptable design: Its design allows for both horizontal and vertical installation, offering flexibility to adapt to the specific needs of each space.
• Compliance with standards: The bar's distance from the wall and design comply with ADA standards, ensuring its accessibility for people with disabilities or reduced mobility.

Product Specifications

• Material: Carbon steel tube with anti-corrosion treatment
• Finish: White epoxy paint
• Tube diameter: 32 mm
• Tube thickness: 1.5 mm
• Supports: 2.5 mm thick galvanised carbon steel sheet
• Screw cover rosettes: Galvanised carbon steel, 0.5 mm thick
• Total length: 400 mm
• Distance from the wall: 43 mm
• Maximum static and dynamic force supported: 120 kg
• Standards: ADA compliant
• Fixation system: 6 AISI 304 stainless steel screws and 6 nylon plugs
