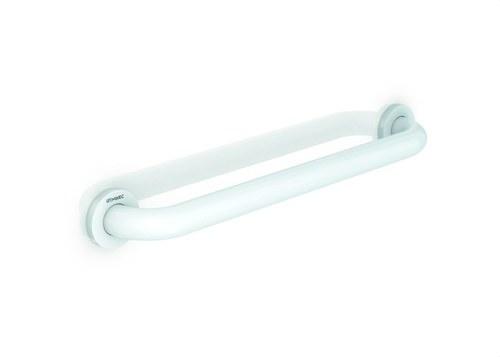

Straight Support Bar 750mm White Steel

The 750 mm straight grab bar, model GW11 04 03 00 by Genwec, is designed to provide safety and stability in accessible bathrooms and other facilities requiring additional support. Made from carbon steel with a durable white epoxy paint finish, this bar is ideal for high-use environments due to its robustness and durability. Its design ensures it can be installed both horizontally and vertically, offering versatility to suit the space's needs.

The carbon steel tube has a diameter of 32 mm and a thickness of 1.5 mm, providing high resistance, while its anti-corrosion treatment ensures a long service life, even in humid environments like bathrooms or showers. Additionally, the 70 μ thick epoxy finish not only provides a clean, modern aesthetic but also ensures excellent protection against rust and daily wear.

The two support points are made of zinc-plated carbon steel sheet with a thickness of 2.5 mm and a diameter of 77.5 mm, ensuring a firm and secure hold. These supports are designed for easy installation with M10 threading, and each features three holes of Ø6.5 mm for stable wall mounting. The screw cover rosettes, also made of zinc-plated carbon steel with a thickness of 0.5 mm, conceal the screws, enhancing the final aesthetic of the product.

The distance of the bar from the wall is 43 mm, which complies with the ADA (Americans with Disabilities Act) requirements, ensuring the bar is positioned at an appropriate distance to facilitate access and use by persons with reduced mobility.

The bar is securely anchored to the wall using 6 nylon plugs of 8x50 mm and AISI 304 stainless steel screws of 5x60 mm, ensuring a solid fixation, even on hollow brick walls. This configuration allows the bar to support a maximum static and dynamic load of 120 kg, guaranteeing safety and support for users.

Technical specifications:

• Carbon steel tube of Ø32 mm and 1.5 mm thickness
• Supports: Zinc-plated carbon steel of 2.5 mm thickness and 77.5 mm diameter
• Screw cover rosettes: Zinc-plated carbon steel of 0.5 mm thickness
• Three holes per support of Ø6.5 mm for firm attachment
• Finish: Corrosion-resistant white epoxy
• Wall distance: 43 mm
• Maximum supported force: 120 kg (static and dynamic)
• ADA compliant
• Total length: 750 mm between support centres

This product is ideal for accessible bathrooms, hospitals, residences or any space requiring a sturdy and high-quality grab bar. With its anti-vandal design and capability to support up to 120 kg, it is a reliable option for ensuring user safety in various facilities.
