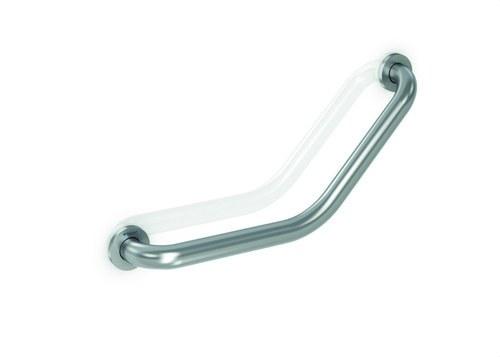

Support Bar 300x300mm Satin Stainless Steel

The 130º angled support bar, model GW11 22 04 01 from Genwec, is an effective and durable solution for enhancing safety in accessible toilets and bathrooms. Made from AISI 304 stainless steel, this bar not only provides reliable support but is also corrosion-resistant, ensuring a long lifespan even in humid environments.

With dimensions of 300x300 mm, this grab bar is designed to facilitate gripping and provide firm support. The stainless steel tube has a diameter of 32 mm and a thickness of 1.5 mm, guaranteeing a robust structure that can support the user's weight. The curved design with a 130º angle at its midpoint improves ergonomics, allowing for more comfortable and accessible use.

The supports of the bar are made from AISI 304 stainless steel sheet with a thickness of 3 mm and a diameter of 75 mm. These are joined to the tube by TIG welding, providing a strong and secure connection. Each support is covered with a stainless steel rosette of 0.5 mm thickness, which conceals the fixing screws and contributes to a clean and professional aesthetic. Additionally, each support has three holes allowing for solid attachment to the wall.

The assembled set has a satin finish, which not only enhances the product's appearance but also provides adequate resistance to daily use. This bar is anti-vandal, designed to withstand intensive use and resist acts of vandalism.

Installation of the bar is straightforward, using 6 nylon plugs of 8x50 mm and AISI 304 stainless steel screws of 5x60 mm, ensuring a firm attachment to brick walls. Once installed, the bar can support a maximum static and dynamic force of 120 kg, guaranteeing user safety.

Technical Specifications:

• Tube Material: AISI 304 stainless steel, Ø32 mm and 1.5 mm thickness
• Supports: AISI 304 stainless steel, 3 mm thickness and 75 mm diameter
• Angle: 130º at the midpoint
• Rosettes: Covers screws, made of stainless steel
• Welding: Complete TIG without filler between support and tube
• Finish: Satin stainless, corrosion-resistant
• Maximum Force Supported: 120 kg (static and dynamic)
• Dimensions: 300 x 300 mm

This angled support bar is ideal for accessible bathrooms, health centres, hospitals and any facility requiring reliable and robust support. Its elegant and functional design enhances safety and accessibility for all users, making this product an excellent choice for any environment.
