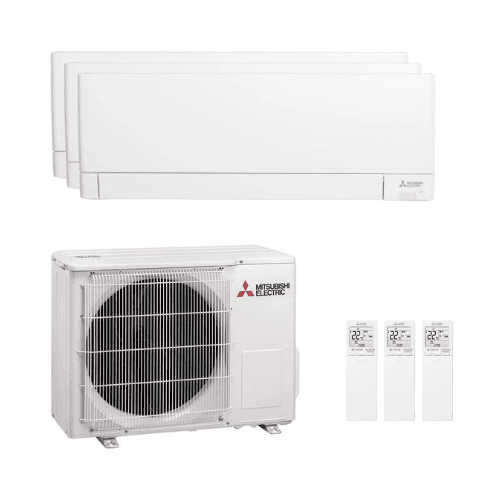

3-in-1 Air Conditioner with WiFi Mitsubishi MSZ-AY 2.5 kW (2) + 3.5 kW

The set includes:

• 2 x Indoor unit MSZ-AY25VGK/U (2.5 kW – 9000 BTU)
• 1 x Indoor unit MSZ-AY35VGK/U (3.5 kW – 12000 BTU)
• 1 x Outdoor multisplit unit MXZ-3F68VF (R32)

This 3x1 system allows you to independently climate control three rooms, optimizing energy consumption based on the actual demand of each area. It is a balanced solution for homes that require different power levels in bedrooms and the living room.

Indoor units MSZ-AY25VGK/U (2.5 kW)

• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Indoor unit MSZ-AY35VGK/U (3.5 kW)

• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

The indoor units come with built-in WiFi for remote control and advanced scheduling. The V-Blocking filtration system with antiviral effect inhibits up to 99% of attached viruses, bacteria, mold, and allergens, improving indoor air quality. Full horizontal and vertical louver control ensures even air distribution.

Outdoor multisplit unit MXZ-3F68VF

• Maximum number of indoor units: 3
• Nominal cooling capacity (min-max): 6.8 kW (2.9 – 8.4 kW)
• Nominal heating capacity (min-max): 8.6 kW (2.6 – 10.6 kW)
• Nominal consumption: 1.79 kW (cooling) / 1.91 kW (heating)
• SEER: 7.96 (A++)
• SCOP: 4.12 (A+)
• Airflow: 42.1 m³/min
• Sound level: 48 dB(A)
• Sound power: 63 dB(A)
• Dimensions (H x W x D): 710 x 840(+30) x 330(+66) mm
• Weight: 58 kg
• Refrigerant: R32 (pre-charged 2.4 kg)
• Power supply: 230 V / 1 Phase – Maximum current 18 A
• Piping diameter: 6.35 x3 mm (liquid) / 9.52 x3 mm (gas)
• Total maximum pipe length: 60 m
• Maximum length per indoor unit: 25 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-3F68VF datasheet.

Recommended room size

• 2.5 kW units: recommended for rooms of 10–25 m²
• 3.5 kW units: recommended for rooms of 20–35 m²

Values are indicative and should be confirmed by thermal load calculation according to insulation, orientation, and climate conditions.

Optional accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking filter with antibacterial and antivirus action
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
