4-in-1 Air Conditioner with Wi-Fi Samsung WindFree Comfort S2 3.5kW 12000 BTU

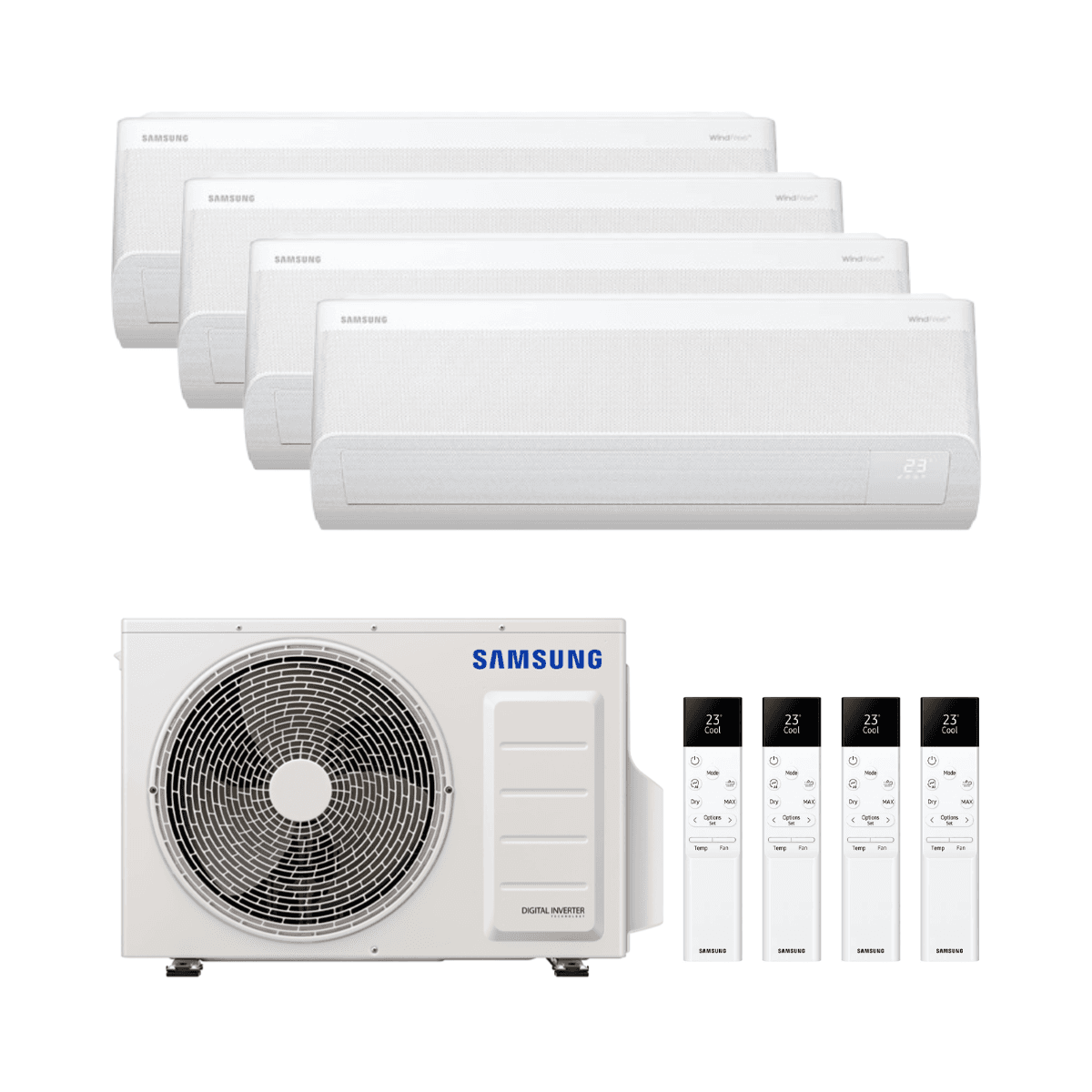

The Samsung WindFree™ multi-split air conditioning system is an advanced solution for independently air-conditioning four rooms with a single outdoor unit. This set includes four indoor units AR60F12C1AWNEU, one outdoor unit AJ080TXJ4KG/EU, and four remote controls, providing maximum efficiency, comfort, and intelligent control.

With WindFree™ technology, cooling is achieved without uncomfortable drafts, distributing air through 23,000 micro-holes to maintain a stable and pleasant temperature. Additionally, its Digital Inverter Boost compressor optimizes energy consumption, allowing significant savings without losing cooling power.

Draft-free cooling with WindFree™

Samsung has developed WindFree™ technology to offer more comfortable and efficient air conditioning. This system offers three operating modes:

1. Fast mode, which cools 43% faster than conventional models.
2. Dehumidification mode, which reduces ambient humidity.
3. WindFree™ mode, which maintains the temperature without generating drafts.

Maximum energy efficiency and consumption savings

The Samsung air conditioning system guarantees high performance with low energy consumption, achieving a superior energy rating.

• Cooling:

  • Total capacity of 8.00 kW (27,300 BTU/h).
  • SEER efficiency of 7.75, ensuring low electrical consumption.
  • EER of 4.06, optimizing cooling efficiency.

• Heating:

  • Total capacity of 9.30 kW (31,700 BTU/h).
  • SCOP of 4.10, ensuring efficient use in winter.
  • COP of 4.37, offering optimal energy-to-heat conversion.

The Samsung Digital Inverter Boost compressor adjusts its power based on demand, achieving a 32% reduction in consumption compared to traditional systems and quieter operation.

This system incorporates Wi-Fi connectivity and AI control, allowing personalized and remote management of the air conditioner.

R32 Refrigerant: efficiency and sustainability

This system uses R32 refrigerant, which provides a range of environmental and performance advantages. The R32 refrigerant charge in the outdoor unit AJ080TXJ4KG/EU is 2.00 kg, with a CO₂ equivalent of 1.35 tCO₂e, making it a sustainable choice.

Detailed technical specifications

Indoor units (4x AR60F12C1AWNEU)

• Dimensions: 889 x 299 x 215 mm.
• Weight: 9.9 kg.
• Sound level: 38 dB(A) on high, 16 dB(A) on low.
• Power consumption: 990 W in cooling, 1,020 W in heating.
• Pipe diameter:
  • Liquid: 6.35 mm (1/4").
  • Gas: 9.52 mm (3/8").

Outdoor unit (AJ080TXJ4KG/EU)

• Dimensions: 880 x 798 x 310 mm.
• Weight: 57.5 kg.
• Sound level: 48 dB(A) in cooling, 50 dB(A) in heating.
• Twin BLDC Rotary Compressor with an output power of 7.65 kW.
• Pipe diameter:
  • Liquid: 6.35 mm (1/4") x4.
  • Gas: 9.52 mm (3/8") x2 + 12.70 mm (1/2") x2.
• Maximum pipe length: 25 meters, with a maximum height of 15 meters.

The Samsung WindFree™ multi-split with four indoor units and a single outdoor compressor is the ideal solution for efficiently and independently air-conditioning four rooms.

Thanks to its WindFree™ technology, Digital Inverter Boost compressor, and connectivity with Samsung SmartThings, this system offers superior comfort, reduced energy consumption, and total control from anywhere.

A perfect choice for those seeking an intelligent, efficient, and high-performance air conditioning system for multiple rooms.
