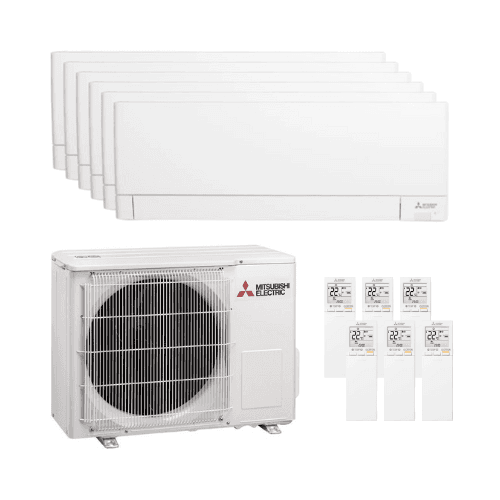

6x1 Air Conditioner with WiFi Mitsubishi MSZ-AY 2.5 kW (4) + 3.5 kW (2)

The set includes:

• 4 x Indoor unit MSZ-AY25VGK/U (2.5 kW – 9000 BTU)
• 2 x Indoor unit MSZ-AY35VGK/U (3.5 kW – 12000 BTU)
• 1 x Outdoor multisplit unit MXZ-6F122VF (R32)

This 6x1 configuration allows you to independently climate control up to six rooms using a single outdoor unit, optimizing facade space and offering a comprehensive solution for large homes or single-family houses. The combination of power outputs allows the system to be adapted to bedrooms and main areas with different thermal needs.

Indoor units MSZ-AY25VGK/U (2.5 kW)

• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Indoor units MSZ-AY35VGK/U (3.5 kW)

• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

All indoor units come standard with built-in WiFi for remote control and advanced scheduling. The V-Blocking filtration system with antiviral effect inhibits up to 99% of viruses, bacteria, mold, and attached allergens. Full horizontal and vertical louver control ensures even air distribution in every room.

Outdoor multisplit unit MXZ-6F122VF

• Maximum number of indoor units: 6
• Nominal cooling capacity (min-max): 12.2 kW (3.5 – 13.5 kW)
• Nominal heating capacity (min-max): 14.0 kW (3.5 – 16.0 kW)
• Nominal power consumption: 3.66 kW (cooling) / 3.31 kW (heating)
• EER / COP: 3.33 / 4.23
• Airflow: 63 m³/min
• Sound level: 55 dB(A)
• Sound power: 69 dB(A)
• Dimensions (H x W x D): 1048 x 950 x 330 mm
• Weight: 87 kg
• Refrigerant: R32
• Gas charge (pre-charge): 2.4 kg
• GWP: 675
• CO₂ eq: 1.62
• Power supply: 230 V / 1 Phase – Max current 29.8 A
• Piping diameter: 6.35 x6 mm (liquid) / 12.7 x1 + 9.52 x5 mm (gas)
• Total maximum pipe length: 80 m
• Maximum length per indoor unit: 25 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-6F122VF datasheet.

Energy efficiency and R32 technology

The Inverter technology combined with R32 refrigerant allows the system's power to be adjusted to the real demand of each room, optimizing annual electricity consumption and reducing environmental impact.

Recommended area

• 2.5 kW units: recommended for rooms of 10–25 m²
• 3.5 kW units: recommended for rooms of 20–35 m²

Indicative values that should be confirmed by thermal load calculation according to insulation, orientation, and climatic conditions.

Optional accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking filter with antibacterial and antivirus action
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
