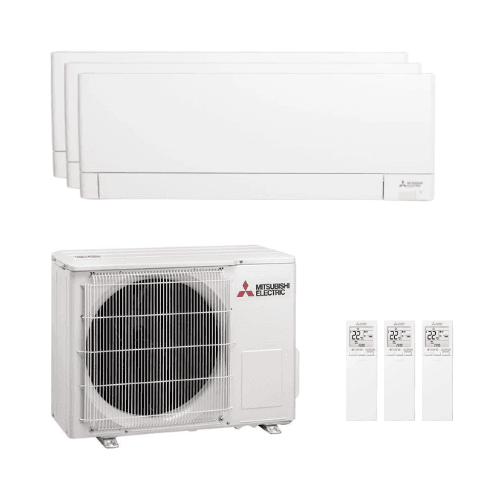

Mitsubishi MSZ-AY 3x1 Air Conditioner with WiFi 3.5 kW 12000 BTU

The set includes:

• 3 x Indoor unit MSZ-AY35VGK/U (3.5 kW – 12000 BTU)
• 1 x Outdoor multisplit unit MXZ-5F102VF (R32)

This 3x1 system allows you to independently climate control three rooms using a single outdoor unit, optimizing facade installation and energy consumption. It is a flexible solution for homes that require uniform power across multiple areas.

MSZ-AY35VGK/U Indoor Units

• Nominal power: 3.5 kW
• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

The indoor units come with built-in WiFi for remote control and advanced scheduling. The V-Blocking system with antiviral effect inhibits up to 99% of viruses, bacteria, mold, and adhered allergens. Full horizontal and vertical louver control ensures even air distribution.

MXZ-5F102VF Outdoor Multisplit Unit

• Maximum number of indoor units: 5
• Nominal cooling capacity (min-max): 10.2 kW (3.9 – 11.0 kW)
• Nominal heating capacity (min-max): 10.5 kW (4.1 – 14.0 kW)
• Nominal power consumption: 2.80 kW (cooling) / 2.28 kW (heating)
• SEER: 8.21 (A++)
• SCOP: 4.65 (A++)
• Airflow: 62 m³/min
• Sound level: 52 dB(A)
• Sound power: 65 dB(A)
• Dimensions (H x W x D): 796 x 950 x 330 mm
• Weight: 62 kg
• Refrigerant: R32 (precharge 2.4 kg)
• Power supply: 230 V / 1 Phase – Maximum current 21.4 A
• Piping diameter: 6.35 x5 mm (liquid) / 12.7 x1 + 9.52 x4 mm (gas)
• Total maximum pipe length: 80 m
• Maximum length per indoor unit: 25 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-5F102VF datasheet.

Energy Efficiency and Performance

Thanks to Inverter technology and R32 refrigerant, the system offers high seasonal performance and optimized electricity consumption, adapting power to the actual thermal load of each room.

Recommended Room Size

• 3.5 kW units: recommended for rooms of 20–35 m²

Indicative values that should be confirmed by thermal load calculation according to insulation, orientation, and climatic conditions.

Optional Accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking filter with antibacterial and antivirus action
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
