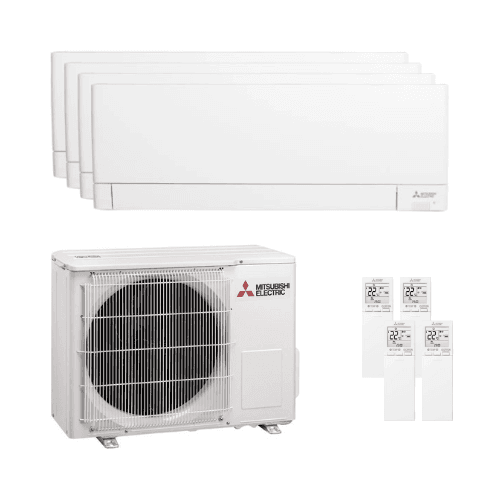

Mitsubishi MSZ-AY 4-in-1 Air Conditioner with WiFi 2.5 kW (3) + 3.5 kW

The set includes:

• 3 x Indoor unit MSZ-AY25VGK/U (2.5 kW)
• 1 x Indoor unit MSZ-AY35VGK/U (3.5 kW)
• 1 x Outdoor multisplit unit MXZ-4F83VF (R32)

This 4x1 system allows you to independently climate control up to four rooms, optimizing performance according to the actual demand of each space. It is an ideal solution for whole-home climate control, combining energy efficiency, low noise levels, and high air quality.

Indoor Units MSZ-AY25VGK/U (2.5 kW)

• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Indoor Unit MSZ-AY35VGK/U (3.5 kW)

• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Outdoor Multisplit Unit MXZ-4F83VF

• Maximum number of indoor units: 4
• Nominal cooling capacity (min-max): 8.3 kW (3.7 – 9.2 kW)
• Nominal heating capacity (min-max): 9.3 kW (3.4 – 11.6 kW)
• Nominal power consumption: 1.97 kW (cooling) / 2.00 kW (heating)
• SEER: 8.51 (A+++)
• SCOP: 4.72 (A++)
• Sound level: 49 dB(A)
• Sound power: 61 dB(A)
• Dimensions (H x W x D): 796 x 950 x 330 mm
• Weight: 62 kg
• Refrigerant: R32 (pre-charged 2.4 kg)
• Voltage: 230 V / 1 Phase – Maximum current 21.4 A
• Total maximum pipe length: 70 m
• Maximum length per indoor unit: 25 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-4F83VF datasheet.

High Energy Efficiency

The MSZ-AY range uses R32 refrigerant and achieves an A+++ rating in cooling (SEER) and A++ in heating (SCOP), ensuring optimized consumption even under demanding conditions.

Air Quality with V-Blocking Filter

Equipped as standard with the V-Blocking filter with antiviral effect, capable of inhibiting up to 99% of viruses, bacteria, mold, and adhered allergens. Its double-layer structure (fiber + electrostatic) effectively captures airborne particles, improving indoor air quality.

Total Airflow Control

Allows full control of the horizontal (except sizes 15 and 20) and vertical louvers from the remote control, ensuring even air distribution and fast, uniform climate control in every room.

Integrated WiFi

MSZ-AY units feature built-in WiFi connectivity, enabling remote control via app and advanced system management from anywhere.

Optional Accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking antibacterial and antivirus filter
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface

Recommended Application

Ideal system for comprehensive home climate control, covering approximately:

• Rooms of 10–25 m² with the 2.5 kW units
• Rooms of 20–35 m² with the 3.5 kW unit (depending on insulation and internal loads)

Values are approximate and should be confirmed by thermal load calculation.
