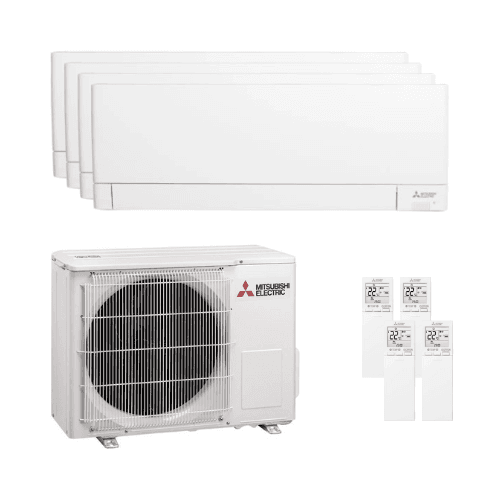

Mitsubishi MSZ-AY 4-in-1 Air Conditioner with WiFi, 3.5 kW 12000 BTU

The set includes:

• 4 x MSZ-AY35VGK/U Indoor Units (3.5 kW – 12,000 BTU)
• 1 x MXZ-5F102VF Multi-split Outdoor Unit (R32)

This 4-in-1 solution allows you to independently climate control four rooms using a single outdoor unit, optimizing facade space and simplifying installation. It is ideal for homes that require multiple zones with uniform power output.

MSZ-AY35VGK/U Indoor Units

• Nominal power: 3.5 kW
• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

The units come with built-in WiFi for remote control and advanced scheduling. The V-Blocking system with antiviral effect inhibits up to 99% of viruses, bacteria, mold, and adhered allergens. Full horizontal and vertical louver control ensures even air distribution in every room.

MXZ-5F102VF Multi-split Outdoor Unit

• Maximum number of indoor units: 5
• Nominal cooling capacity (min-max): 10.2 kW (3.9 – 11.0 kW)
• Nominal heating capacity (min-max): 10.5 kW (4.1 – 14.0 kW)
• Nominal power consumption: 2.80 kW (cooling) / 2.28 kW (heating)
• SEER: 8.21 (A++)
• SCOP: 4.65 (A++)
• Airflow: 62 m³/min
• Sound level: 52 dB(A)
• Sound power: 65 dB(A)
• Dimensions (H x W x D): 796 x 950 x 330 mm
• Weight: 62 kg
• Refrigerant: R32
• Gas charge (pre-charge): 2.4 kg
• GWP: 675
• TCO₂ eq: 1.62
• Power supply: 230 V / 1 Phase – Maximum current 21.4 A
• Piping diameter: 6.35 x5 mm (liquid) / 12.7 x1 + 9.52 x4 mm (gas)
• Total maximum piping length: 80 m
• Maximum length per indoor unit: 25 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-5F102VF datasheet.

Energy Efficiency and R32 Technology

Thanks to Inverter technology and R32 refrigerant, the system continuously adapts compressor power to actual demand, optimizing annual electricity consumption and delivering high seasonal performance.

Recommended Room Size

• 3.5 kW units: recommended for rooms of 20–35 m²

Indicative values that should be confirmed by thermal load calculation according to insulation, orientation, and climate conditions.

Optional Accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking Filter with antibacterial and antivirus action
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
