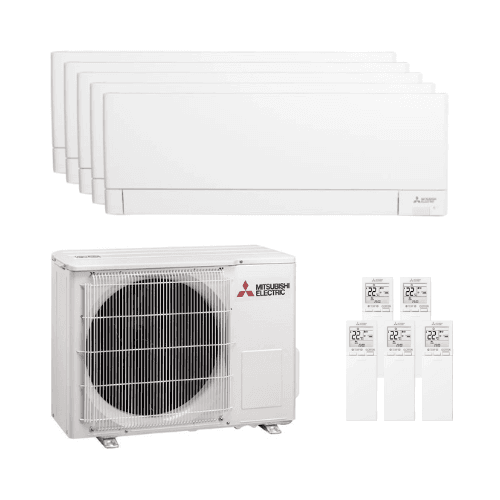

Mitsubishi MSZ-AY 5-in-1 Air Conditioner with WiFi, 2.5 kW 9000 BTU

The set includes:

• 5 x Indoor unit MSZ-AY25VGK/U (2.5 kW – 9000 BTU)
• 1 x Outdoor multisplit unit MXZ-5F102VF (R32)

This 5-in-1 system allows you to independently climate control five rooms, adjusting the power according to the actual demand of each space and optimizing the overall energy consumption of the home.

MSZ-AY25VGK/U Indoor Units

• Nominal power: 2.5 kW
• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

Compact and elegant design, with full horizontal and vertical louver control from the remote for even air distribution. Built-in WiFi and V-Blocking filter with antiviral effect that inhibits up to 99% of viruses, bacteria, mold, and attached allergens.

MXZ-5F102VF Outdoor Multisplit Unit

• Maximum number of indoor units: 5
• Nominal cooling capacity (min-max): 10.2 kW (3.9 – 11.0 kW)
• Nominal heating capacity (min-max): 10.5 kW (4.1 – 14.0 kW)
• Nominal consumption: 2.80 kW (cooling) / 2.28 kW (heating)
• SEER: 8.21 (A++)
• SCOP: 4.65 (A++)
• Airflow: 62 m³/min
• Sound level: 52 dB(A)
• Sound power: 65 dB(A)
• Dimensions (H x W x D): 796 x 950 x 330 mm
• Weight: 62 kg
• Refrigerant: R32 (pre-charged 2.4 kg)
• Power supply: 230 V / 1 Phase – Maximum current 21.4 A
• Piping diameter: 6.35 mm x5 (liquid) / 12.7 mm x1 + 9.52 mm x4 (gas)
• Total maximum piping length: 80 m
• Maximum length per indoor unit: 25 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-5F102VF datasheet.

Energy Efficiency and R32 Refrigerant

The Inverter technology combined with R32 refrigerant achieves high seasonal performance values, reducing annual electricity consumption and improving the system’s environmental impact.

Air Quality and Advanced Comfort

Each unit features a dual-layer V-Blocking filter (fiber + electrostatic) with antiviral effect, capturing airborne particles and improving indoor air quality. Independent room control allows you to adapt climate settings to the user’s real habits.

Recommended Room Size

• 2.5 kW units: recommended for rooms of 10–25 m²

Values are indicative and should be confirmed by thermal load calculation according to insulation, orientation, and climate conditions.

Optional Accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking antibacterial and antivirus filter
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
