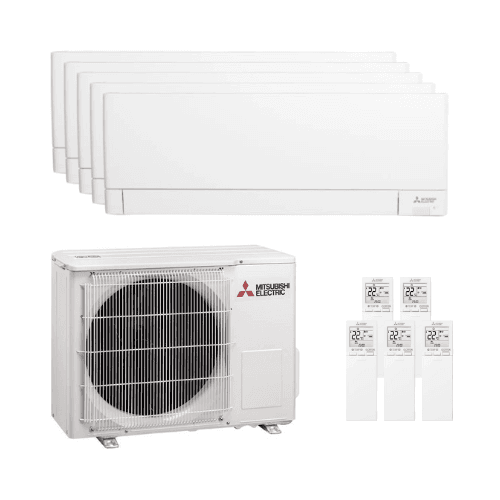

Mitsubishi MSZ-AY 5x1 Air Conditioner with WiFi, 3.5 kW 12000 BTU

The set includes:

• 5 x Indoor unit MSZ-AY35VGK/U (3.5 kW – 12000 BTU)
• 1 x Outdoor multisplit unit MXZ-6F122VF (R32)

This multisplit solution allows you to independently climate control up to five rooms, adjusting the power based on the actual demand of each zone and optimizing the overall energy consumption of the installation. Ideal for entire homes or spaces with multiple separate rooms.

MSZ-AY35VGK/U Indoor Units

• Nominal power: 3.5 kW
• Airflow (Silent/Low/Medium/High/Max): 4.9 / 5.9 / 7.1 / 8.7 / 11.4 m³/min
• Sound level (Silent/Low/Medium/High/Max): 18 / 24 / 30 / 36 / 42 dB(A)
• Sound power: 57 dB(A)
• Dimensions (H x W x D): 299 x 798 x 245 mm
• Weight: 10.5 kg

The indoor units come standard with built-in WiFi for remote control and advanced scheduling, as well as full horizontal and vertical louver control for even air distribution. The integrated V-Blocking filter inhibits up to 99% of viruses, bacteria, mold, and attached allergens.

MXZ-6F122VF Multisplit Outdoor Unit

• Maximum number of indoor units: 6
• Nominal cooling capacity (min-max): 12.2 kW (3.5 – 13.5 kW)
• Nominal heating capacity (min-max): 14.0 kW (3.5 – 16.0 kW)
• Nominal power consumption: 3.66 kW (cooling) / 3.31 kW (heating)
• EER / COP: 3.33 / 4.23
• Airflow: 63 m³/min
• Sound level: 55 dB(A)
• Sound power: 69 dB(A)
• Dimensions (H x W x D): 1048 x 950 x 330 mm
• Weight: 87 kg
• Refrigerant: R32 (pre-charged 2.4 kg)
• Power supply: 230 V / 1 Phase – Maximum current 29.8 A
• Piping diameter: 6.35 x6 mm (liquid) / 12.7 x1 + 9.52 x5 mm (gas)
• Total maximum piping length: 80 m
• Maximum length per indoor unit: 25 m
• Operating range: -10 ~ +46 ºC (cooling) / -15 ~ +24 ºC (heating)

Technical data according to official MXZ-6F122VF datasheet.

Energy Efficiency and R32 Technology

The system uses environmentally friendly R32 refrigerant and Inverter technology to continuously adjust compressor power, improving seasonal performance and reducing the actual electricity consumption of the installation.

Recommended Room Size

• 3.5 kW units: recommended for rooms of 20–35 m²

Indicative values that should be confirmed by thermal load calculation according to insulation, orientation, and climate conditions.

Optional Accessories

• MAC-100FT-E Plasma Quad Connect
• MAC-2460FT-E V-Blocking antibacterial and antivirus filter
• MAC-093SS-E Cleaning kit connectable to vacuum cleaner
• MAC-334IF-E M-NET integration interface
