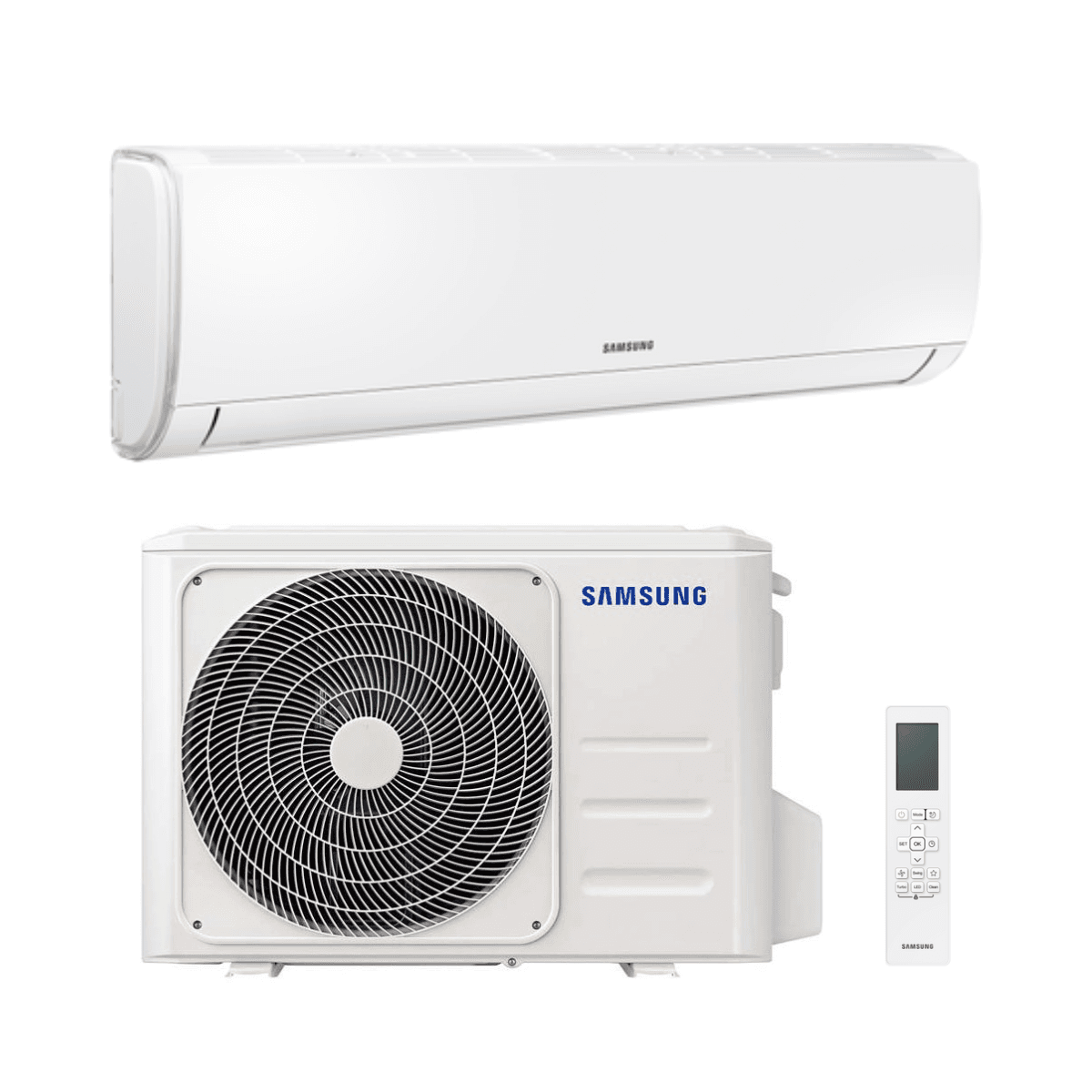

Samsung AR35 Air Conditioner with WiFi 3.5 kW 12000 BTU (New Model)

The Samsung AR35 3.5 kW (12000 BTU) air conditioner is designed to provide reliable and efficient climate control for medium-sized rooms, covering an approximate area of 15 to 35 m². This new model features built-in WiFi connectivity, optimized seasonal performance, and balanced operation for both cooling and heating.

Integrated WiFi and Voice Control

The integrated WiFi allows you to control the unit remotely via the SmartThings app, making it easy to schedule, adjust the temperature, and manage daily use from your smartphone. It is also compatible with major voice control systems: Bixby, Google Assistant, and Amazon Alexa.

Digital Inverter Technology and FOLLOW ME Function

The system features a Digital Inverter compressor that adjusts its power output to the actual needs of the room, helping reduce energy consumption and maintain a more stable temperature. The FOLLOW ME function uses the remote control’s sensor to regulate the unit based on the temperature detected where the user is located.

Air Filtration and Low Noise Level

Equipped with a high-density HD filter, washable and designed to capture dust and common airborne particles. The reduced noise level of the indoor unit makes it especially suitable for living rooms, bedrooms, and workspaces.

• Indoor unit noise level (high/low): 37 / 22 dB
• Outdoor unit noise level (high): 50 dB

Seasonal Performance and Energy Consumption

The Samsung AR35 offers balanced seasonal performance and meets current efficiency standards. For heating, SCOP values for average and warm climates are included.

• Nominal cooling capacity: 3.5 kW (12000 BTU/h)
• Nominal heating capacity: 3.8 kW (13000 BTU/h)
• SEER (cooling): 6.1
• Annual cooling consumption: 211 kWh/year
• SCOP (heating, average climate): 3.9
• Annual heating consumption (average climate): 969 kWh/year
• SCOP (heating, warm climate): 4.0
• Annual heating consumption (warm climate): 871 kWh/year

Refrigerant and Charge

• Refrigerant: R32
• Factory charge: 550 g
• Additional charge (from 5 m): 12 g per meter

Refrigerant Connections (Pipe Diameters)

• Liquid: 6.35 mm (1/4")
• Gas: 9.52 mm (3/8")

Installation: Lengths and Height Difference

The unit allows flexible installation in homes and commercial spaces, adapting to different configurations.

• Pre-charged / maximum pipe length: 5 / 25 m
• Maximum height difference: 10 m

Operating Range

• Cooling: -10 ~ 46 °C
• Heating: -15 ~ 24 °C

Dimensions and Weight

• Indoor unit AR40H12C1AMNEU: 805 x 285 x 194 mm · 9.1 kg
• Outdoor unit AR40H12C1AMXEU: 720 x 495 x 270 mm · 23.2 kg

Reference Electrical Data

• Number of conductors: 3 + 1
• Panel protection (installation < 10 m): 16 A

Package Contents

Set includes 1 indoor unit AR40H12C1AMNEU, 1 outdoor unit AR40H12C1AMXEU, and remote control, ready for professional installation.
