Samsung WindFree Comfort S2 2x1 Air Conditioner with WiFi 2.5 kW + 3.5 kW

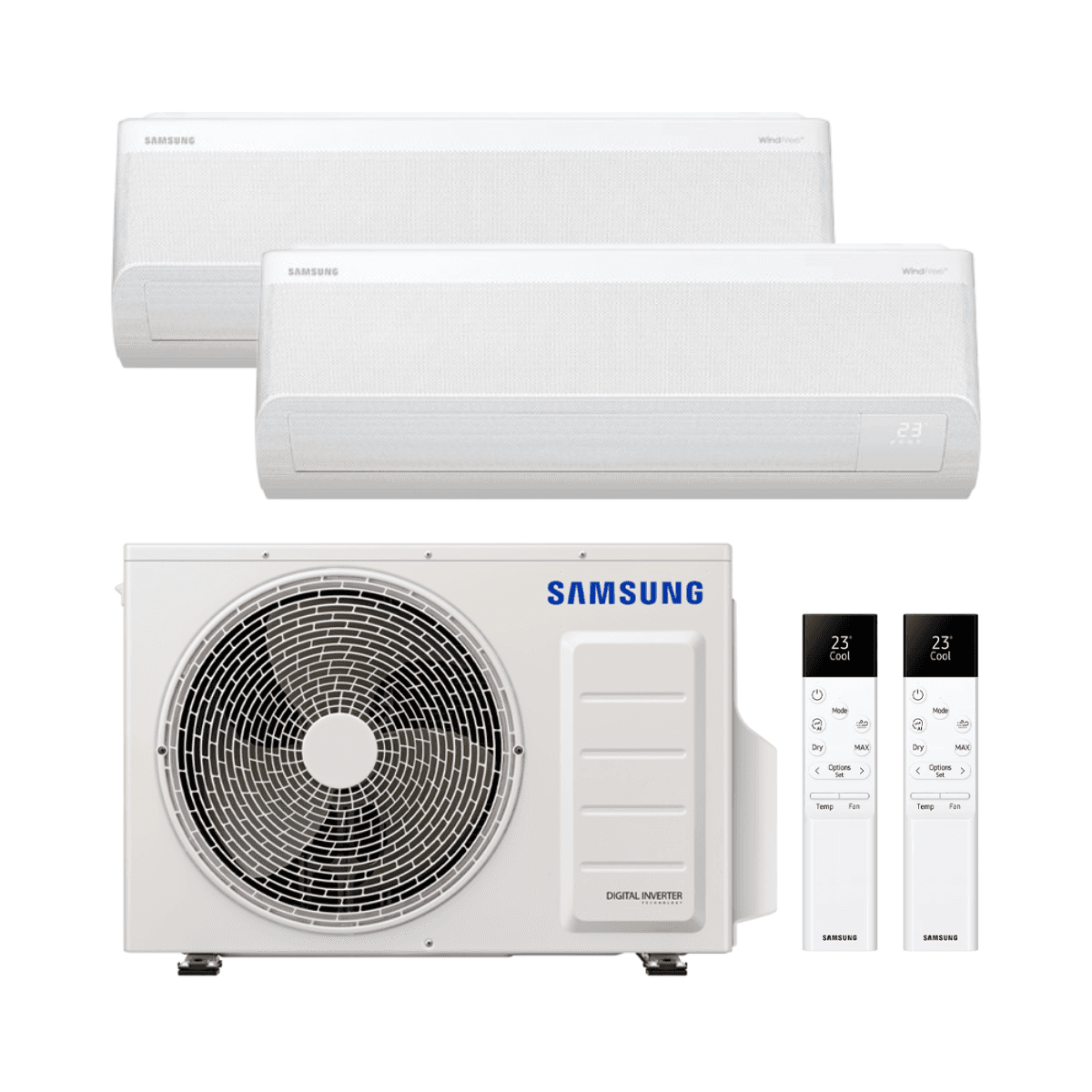

The Samsung WindFree™ multi-split air conditioning system is designed to offer maximum comfort, energy efficiency, and smart connectivity for indoor climate control. Comprising an indoor unit AR60F09C1AWNEU, an indoor unit AR60F12C1AWNEU, an outdoor unit AJ050TXJ2KG/EU, and two remote controls, this set is ideal for cooling two rooms independently with a single outdoor compressor, reducing visual impact and the space needed for installation.

With WindFree™ technology, Digital Inverter Twin Tube compressor, and smart control, this system provides uniform cooling without annoying air drafts and with low energy consumption.

WindFree™ Technology: draft-free cooling

Samsung's WindFree™ technology redefines the cooling experience by eliminating uncomfortable cold air drafts. Thanks to 23,000 micro-holes, the system distributes air evenly, creating a sensation of freshness without direct drafts.

Advantages of WindFree™:
✔️ Maintains a stable temperature without sudden changes.
✔️ Reduces energy consumption by up to 77% compared to fast cooling mode.
✔️ Operates more quietly, creating a comfortable environment without annoying noises.
✔️ Improves air distribution throughout the room, reaching up to 15 meters away.

This system offers three operating modes for versatile climate control:

1. Fast cooling, ideal for reaching the desired temperature in less time.
2. Dehumidification mode, which improves thermal sensation by reducing humidity.
3. WindFree™ mode, which maintains freshness without air drafts.

Energy efficiency and optimized performance

The Samsung WindFree™ multi-split system is designed to ensure maximum efficiency in cooling and heating, reducing energy consumption without compromising performance.

• Cooling:

  • Total capacity of 5.00 kW (17,100 BTU/h).
  • SEER efficiency of 8.54, resulting in lower consumption in warm climates.
  • EER of 4.10, optimizing energy conversion into cooling.

• Heating:

  • Total capacity of 5.60 kW (19,100 BTU/h).
  • SCOP of 4.64, ensuring optimized consumption in winter.
  • COP of 4.38, guaranteeing high heating performance.

Its Digital Inverter Twin Tube compressor accelerates the cooling process, reducing cooling time by up to 43% and maintaining a stable temperature with up to 32% less energy consumption compared to conventional systems.

Smart features and advanced connectivity

Samsung integrates artificial intelligence technology and Wi-Fi connectivity into this system for more intuitive and efficient control.

AI Auto Comfort learns from user habits and analyzes environmental conditions to automatically adjust to the most suitable operating mode.

Additionally, through the Samsung SmartThings app, it is possible to control the system from anywhere via smartphone:
✔️ Turn the equipment on and off.
✔️ Select temperature and operating modes.
✔️ Schedule usage times.
✔️ Monitor energy consumption in real-time.

The system is also compatible with Bixby 2.0, allowing voice control to make adjustments without using the remote control or app.

The system uses R32 refrigerant, which offers multiple advantages over other conventional refrigerants:

✔️ Lower environmental impact, with a GWP 67% lower than R410A.
✔️ Higher energy efficiency, reducing consumption and improving thermal performance.
✔️ Optimized charge, minimizing CO₂ emissions.

The R32 charge in the outdoor unit AJ050TXJ2KG/EU is 1.18 kg, with a CO₂ equivalent of 0.80 tCO₂e, making it a more sustainable option.

Detailed technical specifications

Indoor units

AR60F09C1AWNEU:

• Dimensions: 889 x 299 x 215 mm.
• Weight: 9.9 kg.
• Sound level: 38 dB(A) on high, 16 dB(A) on low.
• Power consumption: 625 W in cooling, 770 W in heating.
• Pipe diameter:
  • Liquid: 6.35 mm (1/4").
  • Gas: 9.52 mm (3/8").

AR60F12C1AWNEU:

• Dimensions: 889 x 299 x 215 mm.
• Weight: 9.9 kg.
• Sound level: 38 dB(A) on high, 16 dB(A) on low.
• Power consumption: 990 W in cooling, 1,020 W in heating.
• Pipe diameter:
  • Liquid: 6.35 mm (1/4").
  • Gas: 9.52 mm (3/8").

Outdoor unit (AJ050TXJ2KG/EU)

• Dimensions: 790 x 548 x 285 mm.
• Weight: 33 kg.
• Sound level: 46 dB(A) in cooling, 47 dB(A) in heating.
• Twin BLDC Rotary Compressor with an output power of 4.09 kW.
• Pipe diameter:
  • Liquid: 6.35 mm (1/4").
  • Gas: 9.52 mm (3/8").
• Maximum pipe length: 20 meters, with a maximum height of 15 meters.

The Samsung WindFree™ multi-split air conditioning system is the perfect solution for efficiently cooling two rooms without annoying air drafts and with advanced connectivity. Its WindFree™ technology, combined with artificial intelligence, remote control via Wi-Fi, and high energy efficiency, makes it an ideal choice for homes and offices seeking maximum comfort with optimized consumption.
