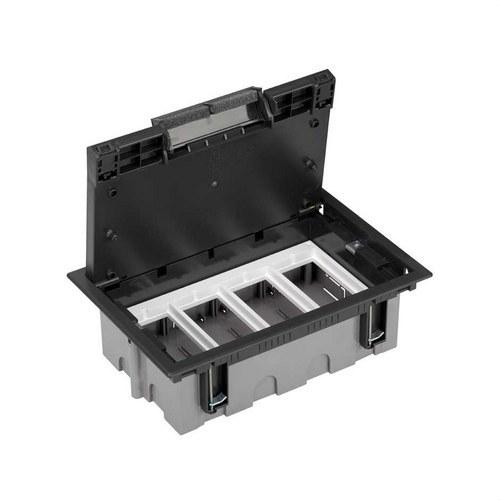

Adjustable Floor Box for 8 Elements in Technical Floor Installation Graphite Simon 500 Cima

The adjustable floor box for 8 elements Simon 500 Cima (ref. 52050104-038) in graphite RAL 7021 finish is specially designed for raised floor installations, offering a robust, safe, and discreet solution for power and service distribution in both professional and residential spaces.

Designed to accommodate up to 8 elements, it allows you to organize multiple devices in a single access point, optimizing functionality in offices, meeting rooms, commercial spaces, or homes with raised flooring.

Made from halogen-free thermoplastic, it ensures flame retardancy in case of fire and reduces smoke toxicity, providing extra safety for any installation. Additionally, it features a metal partition and grounding cable to ensure electromagnetic immunity for VDM wiring when properly installed.

Dimensions and adjustment:

• External dimensions: 187 x 283 x 92 mm
• Depth: 92 mm
• Adjustable depth: from 92 mm to 120 mm
• Opening size: 170 x 265 mm
• Frame elevation from floor level: 3.2 mm
• Hinged cover dimensions: 160 x 256 x 15 mm
• Internal free space (maximum adjustment): 57 mm
• Internal free space (minimum adjustment): 29 mm

Main technical features:

• Series: Simon 500 Cima
• Version: 8 elements
• Protection rating: IP4X
• Impact resistance: IK08
• Maximum load supported: 1300 kg
• Heat resistance: +125ºC (IEC 60695-10-2)
• Extinguishing: +850ºC / 30 seconds (GWFI according to IEC 60695-2-11)
• Maximum working temperature: +90ºC
• Insulation resistance: >5 MΩ at 500 V
• Dielectric strength: 2000 V at 50 Hz for 1 minute without breakdown or tracking

Offers multiple cable entry and management options:

• 10 side entries
• 12 clamp holes
• 5 pre-punched holes Ø20 mm
• 5 pre-punched holes Ø26 mm

Includes protective foam that provides protection against dust and small objects, enhancing the durability of the installation.

Fixing is done using clamps on the raised floor tile (included), with a range between 14 and 54 mm. The cover has 2 opening positions for easy access and cable management.

Optionally, it can be combined with the flush decorative cover (ref. 52053104-038) if the same floor covering is not installed, achieving total aesthetic integration.

Compatibility:

• Simon 500 Cima mechanisms
• Simon 27 Play and Simon K45 (with specific adapter)

Designed for horizontal or vertical installation, it supports an installation temperature range from -5ºC to +60ºC.

Maintenance is simple: clean with a soft, dry cloth, avoiding abrasive products or those containing chlorine.

A professional, durable solution ready to withstand heavy loads without sacrificing aesthetics. If you are looking for a reliable, robust floor box that perfectly adapts to demanding environments, this option is a safe investment.
