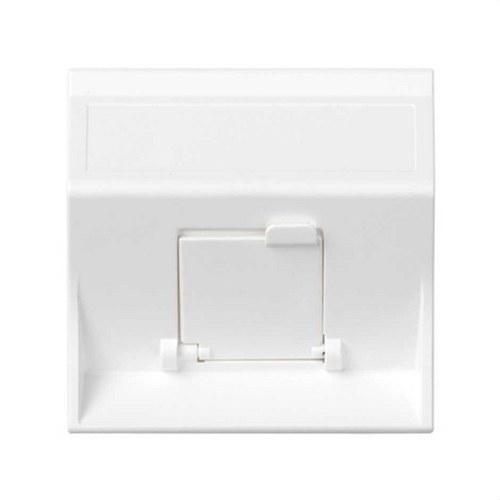

Angled voice and data plate with dust cover, 1 module for 1 RJ45, white, Simon 500 Cima

The Inclined voice and data plate with dust cover, 1 element for 1 RJ45 white Simon 500 Cima (ref. 50000081-030) is a professional component designed for high-performance voice and data installations. It belongs to the Simon 500 Cima series, renowned for its reliability, safety, and versatility in corporate, commercial, and professional environments.

This model features integrated clips that allow direct mounting on vertical or horizontal enclosures without the need for an adapter, speeding up installation and simplifying maintenance. The plate is inclined, providing more comfortable access to the RJ45 connector and better cable management.

Technical and functional features:

• Single inclined version with dust cover to protect the connection
• Compatible with one RJ45 connector with clip format (Combined MD Module)
• White finish (RAL 9003)
• Halogen-free thermoplastic material, flame retardant, and low smoke emission
• IP20
• Dimensions: 50 x 50 x 21 mm, depth 21 mm
• Installation temperature range: -5 to +60 ºC
• Maximum operating temperature: +60 ºC
• Vertical installation by direct clipping, no tools required
• Plate removal only with a tool
• Fully compatible with other elements of the Simon 500 Cima series

Package contents:

• Inclined voice and data plate with dust cover, 1 element

This plate is specially designed for professional environments where safety and reliability are essential. Its inclined design with dust cover improves connection ergonomics and protects components from dust and wear.

Keeping the plate in perfect condition is simple: clean with a soft, dry cloth, avoiding the use of abrasive products with chlorine. With this plate, you can ensure stable and long-lasting connections in your data network.

A professional element from the Simon 500 Cima series that combines protection, functionality, and ease of installation, ideal for any demanding voice and data installation.
