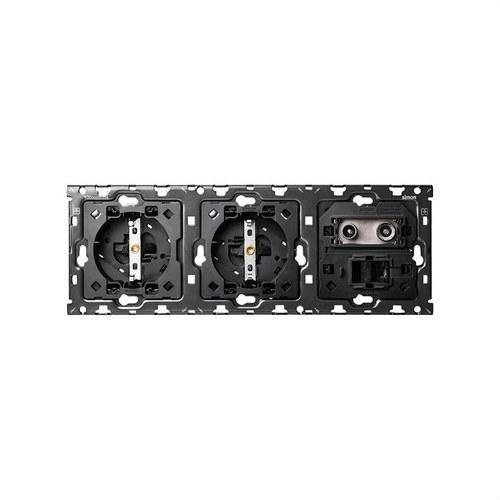

Back kit for 3 elements with 2 Schuko socket bases and 1 unique R-TV+SAT outlet with 1 RJ45 connector Simon 100

The Simon 100 back kit for 3 elements combines functionality and design in a single system, including 2 Schuko socket outlets and 1 R-TV+SAT outlet with RJ45 connector. This set is ideal for flush-mounted installations, providing safe and convenient performance for homes and offices.

The components of the kit meet the following operating requirements:

• Schuko socket: 16 A, 250 V~, with 1Click® cut connection
• R-TV+SAT outlet: Complies with ICT regulations, with screw terminal connection
• RJ45 connector: Compatible with standard data communication systems
• Mechanism type: Push-button/Rocker/Insertion
• Supported cable section: up to 2.5 mm²
• Operating temperature: 5 to 40 ºC
• Storage range: -25 to 50 ºC

The Simon 100 kit allows perfect alignment of the frame and keys thanks to its three available aesthetics: minimal, matrix, and vertical. The key protrudes minimally, ensuring a modern and innovative finish. Its installation is simple, suitable for flush-mounted boxes and compatible with front kits from the same series.

Main features:

• Series: Simon 100
• Version: 3-element set
• Installable in flush-mounted box
• Installation orientation: Horizontal
• Terminal connection type: Schuko 1Click®, R-TV+SAT with screw terminal
• Voltage: 250 V~
• Maximum current: 16 A

Package contents:

• Complete mechanism
• Frame
• Installation instructions

This Simon 100 kit integrates design, safety, and technology in a single set, making it easy to create modern installations tailored to the needs of any home or workspace.
