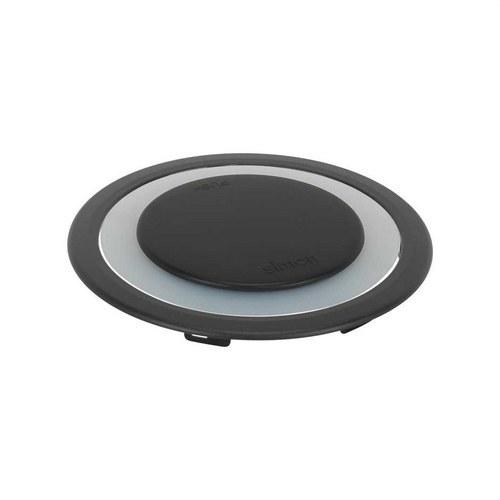

Cover and decorative frame for telescopic profile Teleblock graphite Simon K45

The cover and decorative frame for the Teleblock telescopic profile from the Simon K45 series in graphite finish is designed to offer an elegant, safe, and functional solution for integrated electrical installations in furniture. Its innovative design allows for perfect aesthetic integration while maintaining access and functionality of the electrical system.

This set is specially developed to be compatible with the manually operated Teleblock units from the Simon K45 range, enabling a clean and professional integration into desks, countertops, or technical surfaces where access to connections needs to be convenient, safe, and discreet.

Manufactured from self-extinguishing, halogen-free thermoplastic, this product ensures a high level of safety in case of fire, as it prevents flame propagation and reduces smoke toxicity. This type of material makes it an ideal solution for environments where safety and regulatory compliance are priorities.

The product design includes a silicone gasket that effectively protects against the entry of dust and small objects when the connections are not in use. Thanks to this feature, the system maintains an IP4X protection rating, ensuring optimal performance and greater durability of internal components.

In terms of electrical and thermal resistance, the product meets demanding quality standards:

• Dielectric strength: no breakdown or tracking at 2000 V, 50 Hz for 1 minute
• Heat resistance: up to +70 ºC according to IEC 60670 standard
• Insulation resistance: >5 MΩ at 500 V
• Maximum working temperature: +60 ºC
• Installation temperature: between -5 ºC and +60 ºC

The system is designed to facilitate installation in furniture through a 45º threaded fastening process on the upper closure of the Simon Teleblock K45 telescopic profile, allowing for a firm and secure hold without the need for additional accessories. Furthermore, the set includes all the necessary elements for installation:

• Cover
• Decorative frame
• Cable grommet
• Installation manual

Its design also allows for cable routing, making it possible to use the system as a cable pass-through, keeping connections active even when the telescopic profile is in the lowered position. This functionality adds value in terms of cable organization and management in professional environments.

Regarding its dimensions, it features a diameter of Ø 127 mm, with a profile height in the hidden position of 3 mm and a frame elevation of 3.2 mm, allowing for discreet and minimalist integration into furniture. The total depth of the set is 11 mm, maintaining a low and aesthetic profile.

The graphite color finish (RAL 7021) provides a modern and sophisticated look, easily matching contemporary furniture. It is also available in other finishes such as black or matte chrome, and on request in other configurations, offering flexibility according to project needs.

Main features:

• Series: Simon K45
• Reference: KTLA1/14
• Finish: Graphite (RAL 7021)
• Diameter: Ø 127 mm
• Depth: 11 mm
• Material: Self-extinguishing, halogen-free thermoplastic
• Protection: IP4X
• Heat resistance: up to +70 ºC
• Working temperature: up to +60 ºC
• Installation temperature: -5 ºC to +60 ºC
• Dielectric strength: 2000 V
• Insulation resistance: >5 MΩ

Installation and use:

• Installable in furniture using a flush-mount system
• 45º threaded fastening on the Teleblock profile
• Includes necessary installation elements
• Removal and disassembly only with tools
• Designed to integrate and conceal the profile when not in use

Maintenance:

• Clean with a soft, dry cloth
• If necessary, use a slightly damp cloth
• Do not use abrasive products or cleaners containing chlorine

A solution designed for installations where design, safety, and functionality must go hand in hand, providing a clean and professional finish that perfectly adapts to modern and demanding spaces.
