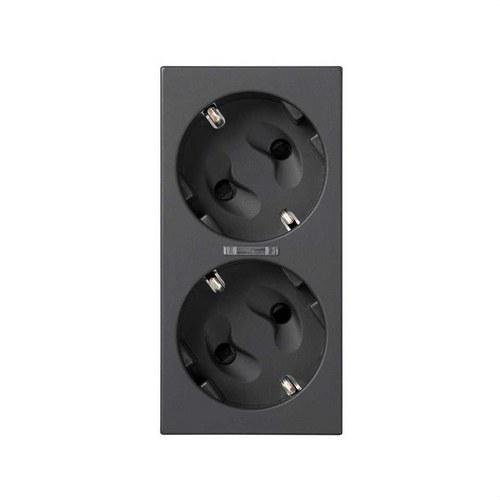

Double Schuko socket base with safety device, LED and 1Click® connection grey Simon 500 Cima

The Simon 500 Cima double Schuko socket outlet with safety device, LED indicator, and 1Click® connection system has been developed to offer maximum functionality, fast installation, and safety in demanding professional and residential environments. Its modern design with a graphite finish makes it an aesthetic and efficient solution for offices, commercial spaces, workplaces, and homes.

This model supports a voltage of 250 V and a current of 16 A, allowing you to safely power two devices simultaneously. It features a safety device that prevents accidental contact and a low-consumption LED status indicator for easy visual identification of the socket even in low-light conditions.

One of its main added values is the 1Click® cut connection system, which allows installation without tools or screws. Simply insert the cable, press, and the mechanism is properly connected, reducing installation time and minimizing errors. It also supports cable sections from 1.5 to 2.5 mm, adapting to most standard electrical installations.

• Series: Simon 500 Cima
• Format: Double Schuko
• Version: Double
• Finish: Graphite (RAL 7021)
• Number of sockets: 2
• Number of modules: 2
• Dimensions: 100 x 50 mm
• Depth: 46 mm

The base is made with metal components insulated with self-extinguishing, halogen-free thermoplastic, ensuring high thermal resistance and helping to prevent flame spread and smoke toxicity in case of fire. It withstands heat up to +125 ºC and passes an extinction test of +850 ºC for 30 seconds, according to IEC standards.

• Rated current: 16 A
• Voltage: 250 V~
• Protection rating: IP20
• LED indicator: 0.55 mA
• Connection type: 1Click® cut
• Linkable: Yes, with specific accessory

Installation can be done both surface-mounted or flush-mounted, and is exclusively compatible with Simon 500 Cima enclosures. It allows for horizontal or vertical mounting, and the socket or cover can only be removed with a tool, providing extra security against unauthorized tampering.

Maintenance is very simple: just clean the surface with a soft, dry cloth. The use of abrasive products or chlorine-based cleaners is not recommended to preserve the finish and integrity of the material.

A socket outlet designed for everyday professional use: quick to install, safe, robust, and with a design that fits perfectly in any modern space.
