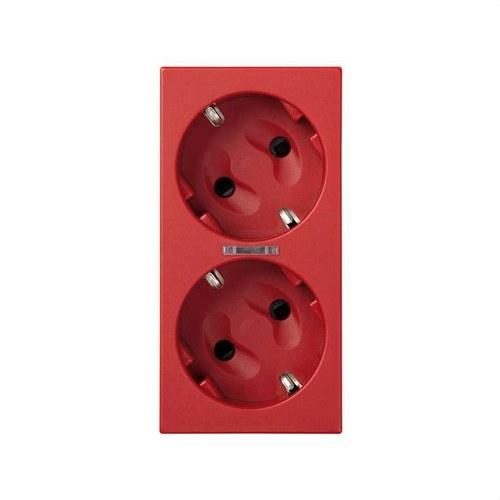

Double Schuko Socket Base with Safety Device, LED and 1Click® Connection Red Simon 500 Cima

The Simon 500 Cima double Schuko socket outlet combines safety, functionality, and design in a vibrant red finish. This model features a safety device, LED indicator, and 1Click® cut terminal connection, providing quick and reliable installation for both residential and professional electrical systems.

Key technical features:

• Rated current: 16 A
• Voltage: 250 V~
• Format: Double Schuko
• Dimensions: 100 x 50 mm; depth: 46 mm
• Supported cable section: 1.5 to 2.5 mm
• Installation temperature range: -25 to 60 ºC
• IP20 protection
• Heat resistance: +125ºC according to IEC 60695-10-2
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• LED consumption indicator: 0.55 mA
• Standard: UNE-EN 60998-2-3
• Metallic materials with self-extinguishing, halogen-free thermoplastic insulation

This socket is suitable for both surface and flush mounting, and its maintenance is extremely simple: just clean with a soft, dry cloth, avoiding any abrasive or chlorine-based products. The base allows for easy cover replacement in case of breakage using reference 50011841-037, and can be linked with other modules using accessory 50000996-039.

Its 1Click® terminal connection enables fast and secure installation, while its high-quality design ensures durability and resistance to wear and extreme conditions. The Simon 500 Cima double Schuko socket outlet is ideal for homes, offices, workshops, or any installation requiring safety, efficiency, and style.

A socket that not only performs its electrical function optimally but also adds a touch of color and modernity to any room, always keeping safety as a top priority.
