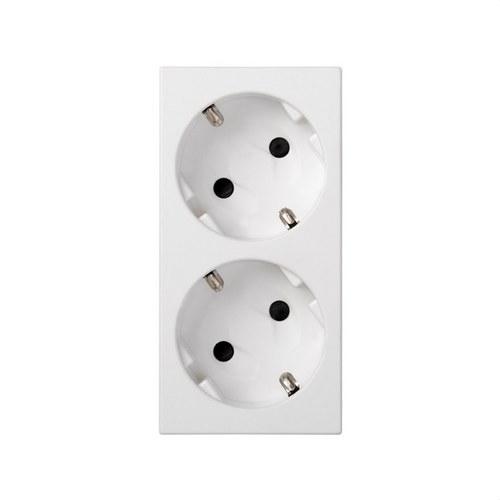

Double Schuko socket with safety device and 1Click connection white Simon 500 Cima

The Simon 500 Cima Double Schuko Socket Outlet with Safety Device and 1Click® Quick Connection (ref. 50000432-030) combines versatility, innovation, and maximum safety in a compact, professional format. Designed for demanding installations, it allows you to power two devices simultaneously with total reliability.

Compatible with voltages up to 250 V~ and a current of 16 A, this double socket ensures stable performance even in intensive use environments. Its white RAL 9003 finish provides a clean, neutral look, making it perfectly suitable for residential spaces, offices, or commercial installations.

It is made with metal components insulated in self-extinguishing, halogen-free thermoplastic, which significantly increases safety in the event of a fire by preventing flame propagation and reducing smoke toxicity.

One of its key differentiators is the 1Click® quick connection system, which does not require stripping the wiring. This system can reduce installation time by up to 50%, as you simply insert and press to securely and efficiently fix the mechanism.

Key technical features:

• Format: Double Schuko
• Rated current: 16 A
• Rated voltage: 250 V~
• Dimensions: 100 x 50 mm
• Depth: 46 mm
• Number of modules: 2
• Number of sockets: 2
• IP20
• Heat resistance: +125ºC (IEC 60695-10-2)
• Extinguishing: +850ºC / 30 seconds (GWFI)
• Dielectric strength: 2000 V at 50 Hz for 1 minute without breakdown
• Insulation resistance: >5 MΩ at 500 V
• Accepted cable section: from 1.5 to 2.5 mm²
• Installation temperature range: -25ºC to +60ºC
• Number of terminals: 3 inputs and 3 outputs
• Cut connection (1Click®) and option for screw terminal connection
• Linkable with accessory 50000996-039

Compatible with Simon 500 Cima enclosures, it can be installed both surface-mounted or flush-mounted, in horizontal or vertical position, offering maximum flexibility in installation. The cover and socket can only be removed with a tool, providing extra safety in professional environments.

In case of breakage, a replacement cover can be ordered using reference 50001841-030, making maintenance easy and extending the product's lifespan.

The product comes with the double socket outlet, cover, and installation manual, ready for quick, clean, and safe installation.

A robust, practical solution designed for those who seek installation efficiency without compromising on safety and quality. Perfect for professional jobs where every detail matters and time makes the difference.
