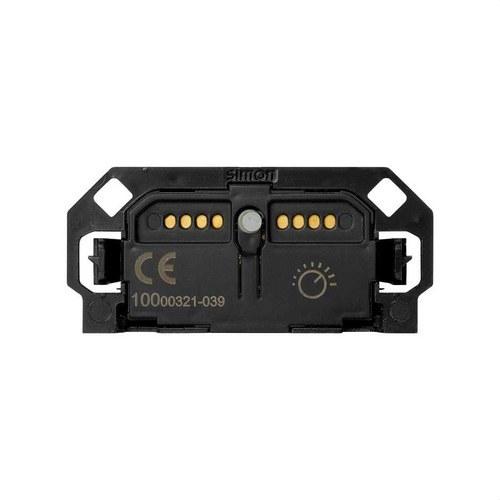

Electronic Dimmer Switch 230V Phase Cut 2/3 Wires Simon 100

The Simon 100 230V Electronic Dimmable Switch is an advanced solution for lighting control through phase-cut dimming, designed to offer maximum comfort, efficiency, and compatibility with a wide range of luminaires. It is part of the innovative Simon 100 series and is exclusively compatible with its frames, ensuring perfect aesthetic and functional integration.

This dimmer allows you to intuitively adjust light intensity thanks to its touch-sensitive surface: simply slide your finger to dim the light, while switching on and off is done by pressing the button. This system maintains the characteristic usability of the series, combining minimalist design with advanced technology.

It offers a dimming power of 0 to 240 W for traditional loads and 0 to 100 W for LED lighting, being compatible with phase-cut dimmable LED bulbs, low-consumption lamps, fluorescents, and halogens with electromagnetic transformers. This makes it an ideal choice for installations in homes, hotels, healthcare centers, and professional spaces where precise lighting control is required.

The mechanism supports installation with 2 or 3 wires. Although it can operate without a neutral wire, connecting it is recommended to maximize compatibility with LED luminaires and ensure optimal performance. The screw terminal supports up to 4 contacts and cable sections of 1.5 to 2.5 mm², making installation safe and reliable.

• 230V~ electronic dimmable switch with phase-cut technology
• Compatible with Simon 100 frames
• Touch dimming by sliding your finger
• On/off by pressing the button
• 2 or 3-wire installation (neutral recommended)
• Half-module format

• Dimmable LED power: 0 – 100 W
• Traditional load power: 0 – 240 W
• Compatible with phase-cut dimmable LED bulbs
• Compatible with fluorescents and low-consumption lamps: 0 – 100 W
• Compatible with halogens with electromagnetic transformer

• Power supply: 127 / 230 V~
• Supported cable section: 1.5 to 2.5 mm²
• Protection rating: IP20
• Operating temperature: 0 to 40 ºC
• Mechanism type: detection // push rocker

• Flush-mounted installation in universal box
• Horizontal installation orientation
• Screw terminal connection
• Bus connection by insertion

The product comes with the dimmable switch and instruction manual, ensuring a quick and hassle-free installation. For maintenance, simply follow the usual cleaning recommendations for the Simon series, ensuring long-lasting performance and optimal operation.

If you are looking for an elegant, precise, and reliable dimmer to create customized environments, this Simon 100 switch is a safe bet that stands out for both comfort and design from the very first use.
