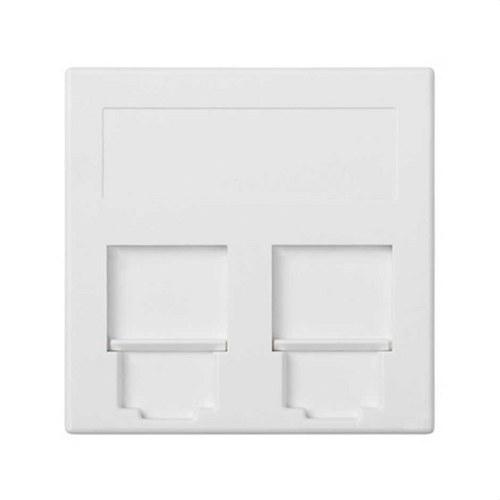

Flat Voice and Data Plate with Dust Cover 1 Element for 2 RJ45 Compatibility with Other Manufacturers White Simon 500 Cima

The Simon 500 Cima flat voice and data plate with dust cover is designed to accommodate two RJ45 connectors in a single unit, offering a practical, secure, and highly compatible solution for voice and data network installations. Its white finish provides a clean and professional look, ideal for both residential environments and commercial or tertiary installations.

One of the main advantages of this plate is its broad compatibility with RJ45 connectors from other manufacturers, based on Keystone I and II formats. This makes it a highly versatile option for renovation, expansion, or maintenance projects of existing networks, eliminating the need to replace already installed connectors.

The plate features an integrated dust cover, a key detail to protect connectors from dirt and dust, extending the lifespan of the installation and ensuring optimal network performance. Additionally, it includes integrated clips that allow direct mounting onto Simon 500 Cima enclosures, both vertically and horizontally, without the need for adapters or tools.

• Series: Simon 500 Cima
• Type: Flat voice and data plate
• Format: RJ45
• Number of modules: 1 unit
• Capacity: 2 RJ45 connectors
• Finish: White (RAL 9003)
• Protection rating: IP20
• Dimensions: 50 x 50 x 11 mm
• Depth: 11 mm

Made from halogen-free thermoplastic material, this plate ensures no flame propagation in case of fire and low emission of toxic fumes, significantly increasing safety in homes, offices, commercial spaces, and corporate headquarters.

• Compatible with Simon 500 Cima enclosures
• Tool-free direct clip-on installation
• Removal only with a tool
• Installation orientation: vertical
• Installation temperature range: -5 to +60 ºC
• Maximum operating temperature: +60 ºC

The plate includes RJ45 adapter modules, although RJ45 connectors are not included, allowing the installer to select the most suitable model according to project requirements. Its compatibility covers a wide range of renowned manufacturers, making it a flexible and cost-effective solution.

For maintenance, simply clean periodically with a soft, dry cloth, avoiding abrasive or chlorine-based products to preserve its finish and functionality.

A plate designed to make the installer’s job easier and provide the end user with a neat, safe, and ready-to-use installation. The Simon 500 Cima is a practical choice that fits perfectly into any well-executed voice and data project.
