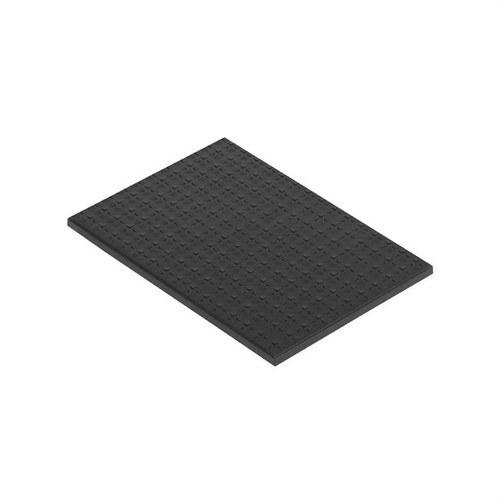

Flush Mount Cover for Adjustable Floor Box or Access Cover 4 Elements Graphite Simon 500 Cima

The flush-mounting decorative cover for adjustable floor box or 4-element access cover from the Simon 500 Cima series (reference 52053102-038) is designed to provide a practical and stylish solution for electrical installations in homes, commercial spaces, and public buildings. This optional accessory is perfect for covering floor boxes when the same flooring material is not installed, ensuring a uniform and elegant finish in any space.

Made from halogen-free thermoplastic, this cover ensures high fire resistance, preventing flame spread and reducing smoke toxicity in case of fire. Its robust construction provides durability for intensive daily use, making it ideal for both residential and professional installations.

• Optional accessory to combine with adjustable floor box
• Compatible with access covers and non-matching floorings
• Halogen-free thermoplastic material
• High resistance to heat and impacts (IK08)
• Elegant and modern graphite finish

Its dimensions are 154 x 107 x 5 mm, allowing for easy and discreet installation that integrates perfectly with your setup. The cover is secured with the supplied screws, ensuring stability and safety. It can be installed either horizontally or vertically, depending on project requirements.

• IK rating: 8
• IP4X: protection against solids
• Installation temperature range: -5 to +60 ºC
• Maximum operating temperature: +90 ºC
• Glow wire test: +850 ºC / 30 s (GWFI according to IEC 60695-2-11)
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Insulation resistance: >5 MΩ at 500 V

To maintain its appearance and functionality, it is recommended to clean with a soft, dry cloth, avoiding abrasive cleaners or those containing chlorine. This ensures the cover retains its graphite finish in perfect condition for years.

An economical and high-quality option to protect and enhance your floor boxes, with the reliable design and guarantee of Simon 500 Cima.
