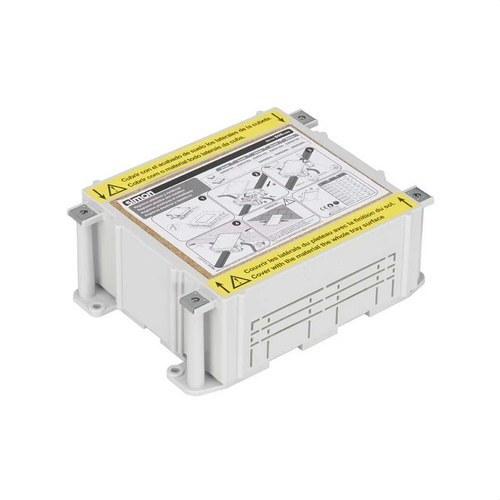

Plastic bucket for adjustable floor box with 2 elements for floor installation Simon 500 Cima

The plastic tray for adjustable floor box with 2 elements Simon 500 Cima is specifically designed for floor installations, offering a robust, safe, and versatile solution even in spaces with limited depth.

Part of the Simon 500 Cima system, this range is designed to integrate electrical and communication mechanisms into the floor in an organized and protected way. Thanks to its design, it allows installation in both raised floors and concrete floors, adapting to different construction needs. If the same floor covering is not used, it can be combined with a flush-mount decorative cover for a clean and professional finish.

Manufactured from high-resistance plastic with self-extinguishing, halogen-free thermoplastic insulating components, this tray ensures high fire safety, preventing flame propagation and reducing smoke toxicity in case of fire.

• Series: Simon 500 Cima
• Version: 2 elements
• Finish: Grey
• Material: Plastic
• IK Rating: IK08
• Protection grade: IP4X
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Insulation resistance: >5 MΩ at 500 V
• Heat resistance: +125 ºC
• Extinction: +850 ºC / 30 s
• Maximum working temperature: +90 ºC
• Installation temperature range: -5 to +60 ºC

• Number of pre-punched holes Ø30 mm: 2
• Number of side entries: 4
• Number of channel entries: 2
• Opening dimensions: 220 x 172.2 mm
• Overall dimensions: 220 x 172 x 80 mm
• Depth: 80 mm
• Adjustable depth range: 80 - 110 mm
• Channel entry dimensions: 100 x 20 mm / 130 x 40 mm

To complete the installation correctly, this tray must be combined with a 2-element floor box for pavement, available in grey or graphite finish. Fixing is done with screws, and the use of four screws is recommended for optimal attachment to the slab.

A solid and reliable solution to integrate power and data into the floor with complete safety and a professional finish, even for demanding projects.
