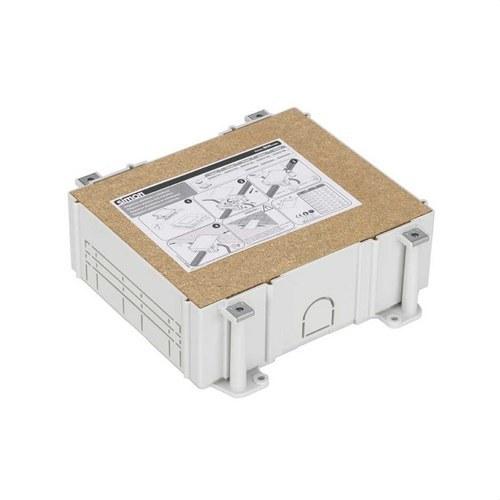

Plastic Bucket for Adjustable Floor Box with 6 Elements for Pavement Floor Installation Simon 500 Cima

The plastic tray for the adjustable floor box with 6 modules from the Simon 500 Cima series (reference 52052103-035) is an essential component for electrical installations in flooring, suitable for both new construction and renovations. Its design accommodates six modules and facilitates the integration of adjustable floor boxes with professional finishes, ensuring functionality, durability, and aesthetics.

Manufactured from halogen-free thermoplastic material, this tray guarantees:

• Resistance to high temperatures (+125ºC according to IEC 60695-10-2) and impacts (IK08).
• No flame propagation in case of fire and low toxicity in smoke emissions.
• Compatibility with 6-module floor boxes in grey finish (ref. 52050003-035) or graphite (ref. 52050003-038).
• Dimensions of 220 x 227 x 80 mm and adjustable depth from 80 to 130 mm.
• IP4X rating and insulation classification >5 MΩ at 500 V.
• Lateral and channeled pre-punched entries Ø30 mm and dimensions 100x20 mm and 130x40 mm, for easy cable and conduit installation.

Installation is quick and secure using screws; at least 2 screws are recommended for basic fixing and 4 for complete and stable fixing to the floor. The tray allows for horizontal or vertical installation and is specifically designed for flooring applications.

The packaging includes the tray, protective cover, and installation manual, ensuring the assembly process is simple and efficient. Its robust and durable design makes it ideal for environments with constant traffic, whether residential, commercial, or public.

With the Simon 500 Cima 6-module tray, you will achieve a professional, safe, and aesthetic installation, with the reliability that characterizes Simon products and the ease of integration into any electrical project.
