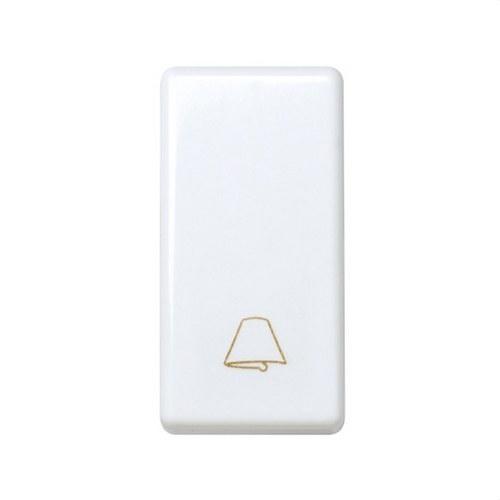

Push Button with Bell Engraving, Half Element, and Quick Connection System, White Simon 27 Play

The Simon 27 Play bell-engraved push button in white finish is a practical and functional mechanism designed for electrical installations where bells or signaling systems need to be activated. Its half-element format allows you to optimize space within compatible Simon 27 series frames, maintaining a clean and organized aesthetic.

This push button features a bell engraving on the key for easy identification of its function. In addition, it includes a quick-connect terminal system that simplifies conductor connection, reducing installation time and making the installer’s job easier.

The mechanism offers pivoting operation and is made with metallic components and halogen-free thermoplastic insulation and a thermoset trim, materials that ensure safety, strength, and durability for everyday use.

Main features:

• Series: Simon 27 Play
• Product type: push button
• Engraving: bell symbol
• Format: half element
• Finish: white
• Operation: pivoting
• Rated current: 10 A
• Voltage: 250 V~
• Connection type: quick-connect terminal
• Supported cable section: 1.5 to 2.5 mm
• Required cable stripping: 11 mm
• Dimensions: 22.5 x 45 mm
• Material: metallic components with halogen-free thermoplastic insulation
• Protection rating: IP20
• Operating temperature: 5 ºC to 40 ºC
• Withstand temperature: -25 ºC to 50 ºC

Compatibility:

• Simon 27 Play frames
• Simon 27 Neos
• Simon 27 Scudo
• Simon 27
• Simon 27 Centralizations
• Simon 44 Aqua

Standards:

• EN 60669-1:1999 + A1:2002 + A2:2008
• EN 50581
• Product suitable for CE market

Installation:

• Can be installed in universal, American, centralization, and reduced-space flush mounting boxes
• Suitable for surface or flush mounting
• Horizontal or vertical mounting orientation
• Fixing by Simon 27 claw system

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive cleaners or products containing chlorine

This Simon 27 Play push button offers a simple, safe, and durable solution for bell or signaling systems. Its discreet design and easy installation make it a very practical choice for both residential and professional spaces.

A small but essential mechanism to complete a functional installation, with the quality and reliability guarantee of the Simon range.
