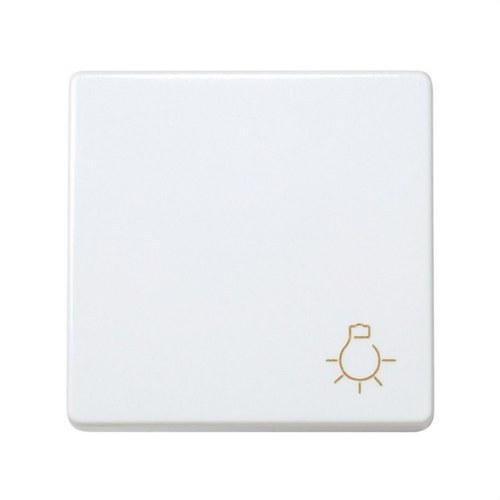

Push Button with Light Engraving and Quick Connection System White Simon 27 Play

The Simon 27 Play White Push Button with Light Engraving and Quick Terminal System (ref. 27151-65) is a control mechanism designed to offer reliability, easy installation, and a refined aesthetic. With a white finish and a light bulb engraving in the lower right corner, it allows you to clearly identify its function in any electrical installation.

It belongs to the Simon 27 Play series, a versatile range that combines design and functionality. This push button features a 10A current rating and a 250 V~ voltage, making it suitable for multiple applications in both residential and professional environments.

It incorporates a quick terminal system that ensures a secure and fast connection, reducing installation time. It supports a cable section of 1.5 to 2.5 mm² and requires a cable stripping of 11 mm for proper connection.

Its operation is pivoting, offering a precise and comfortable response when pressed. It is made with metal components with halogen-free insulation and a thermoplastic cover, ensuring durability and safety for daily use.

Main technical features:

• Series: Simon 27 Play
• Type of mechanism: pivoting push button
• Current rating: 10A
• Voltage: 250 V~
• Supported cable section: 1.5 – 2.5 mm²
• Required cable stripping: 11 mm
• Terminal connection type: quick
• Finish: white
• Engraving: light symbol (bulb)
• Material: thermoplastic
• Protection rating: IP20
• Operating temperature: 5 – 40 ºC
• Version: individual
• Certification: CE

Compatibility:

• Simon 27 Play frames
• Simon 27 Neos
• Simon 27 Scudo
• Simon 27
• Simon 27 Centralizations
• Simon 44 Aqua

Installation:

• Installable in universal, American, and centralization boxes
• Suitable for surface or flush mounting
• Installation orientation: horizontal or vertical
• Fixing with Simon 27 claw

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive products or cleaners containing chlorine

It is recommended to combine with a white frame for a homogeneous and elegant set. Thanks to its clear design and identifying engraving, it is ideal for installations where simple and effective visual signaling is required.

A practical and safe option for those looking for a durable push button, easy to install, and perfectly integrated into any electrical project.
