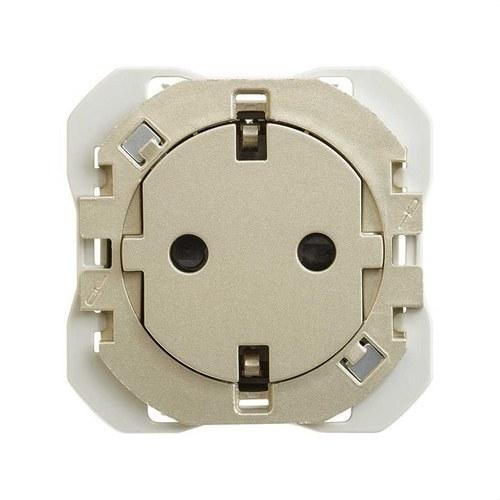

Schuko socket base clean with screw terminal system cava Simon 270

The Schuko CLEAN socket outlet from the Simon 270 series in cava finish represents an evolution in the design of traditional electrical mechanisms. This model combines aesthetics, functionality, and technology to offer a modern solution that integrates seamlessly into any space thanks to its flat surface, flush with the wall.

One of the most innovative features of this socket is its patented auto-cover magnetic system. Thanks to this mechanism, the cover automatically slides over the socket when not in use, preventing dust and dirt from accumulating inside. This not only improves hygiene but also makes cleaning easier and helps extend the product’s lifespan.

The CLEAN design of the Simon 270 is intended to fit into minimalist-style frames, achieving a discreet, elegant, and contemporary look. Its cava color finish adds a sophisticated touch that suits both modern residential spaces and professional environments.

In addition to its design, this socket offers a high level of safety and reliability during installation. It features a screw terminal connection system, allowing for a firm and secure connection of the electrical wiring.

Main features:

• Series: Simon 270
• Product type: Schuko CLEAN socket outlet
• Format: Schuko
• Number of sockets: 1
• Finish: cava
• Material: plastic
• Rated current: 16 A
• Voltage: 250 V~
• Frequency: 50 – 60 Hz
• Supported cable section: from 1.5 to 2.5 mm²
• Connection type: screw terminal
• Number of elements: 1
• Protection rating: IP20
• Operating temperature: 5 ºC to 45 ºC
• Storage temperature: -25 ºC to 50 ºC
• Certification: CE

Compatibility:

• Minimalist-style CLEAN Schuko frames Simon 270

Installation: This mechanism is designed for flush mounting in a universal box. The connection is made via screw terminals, requiring approximately 14 mm of cable to be stripped. The installation orientation is horizontal.

Package contents:

• Socket outlet mechanism
• Cover
• Instruction sheet

Maintenance: To keep the product in perfect condition, it is recommended to clean it with a soft, dry cloth. Do not use abrasive products or cleaners containing chlorine, as they may damage the finish of the mechanism.

The CLEAN Simon 270 socket not only adds functionality to your electrical installation but also provides an aesthetic and practical improvement for everyday use. Its smart design prevents the socket from being exposed when not in use, which is especially appreciated in homes where keeping everything clean and tidy is a priority.

It’s a modern and well-thought-out solution: it integrates into the wall, is easy to clean, and adds that subtle touch of quality that stands out in a well-done installation.
