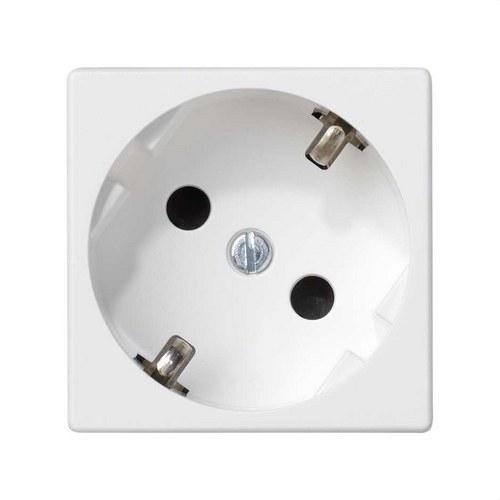

Schuko socket outlet with safety device and screw terminal white Simon K45

The Simon K45 Schuko socket outlet with safety device, reference K01/9, is designed to provide a safe, robust, and versatile solution for all types of professional and residential electrical installations. It belongs to the renowned Simon K45 range, created for environments where reliability and durability are key requirements.

It features a screw terminal system with two connection modules, ensuring a firm and stable wiring connection. This system allows for input and output through the terminal, optimizing wiring in series installations and enhancing the overall electrical safety.

Manufactured with metallic components and halogen-free, self-extinguishing thermoplastic insulation, this socket outlet prevents flame propagation in case of fire and reduces smoke toxicity, meeting the most demanding safety standards. Its white finish (RAL 9003) provides a clean and neutral appearance, easily integrating into any environment.

• Schuko socket outlet with safety device
• Simon K45 Series
• Screw terminal for secure connections
• Self-extinguishing, halogen-free materials
• Designed for intensive and professional use

Compatible with Simon K45 enclosures for wall, floor, ceiling, and furniture installation, as well as with Simon 500 Cima enclosures using the appropriate adapter. This makes it a highly flexible solution for technical projects requiring adaptability to different wiring systems.

• Rated current: 16 A
• Operating voltage: 250 V~
• Format: Schuko
• Protection rating: IP20
• Supported cable section: from 1.5 to 2.5 mm²
• Number of connections per terminal: 2 (input / output)
• Number of terminals: 3 inputs / outputs
• Insulation resistance: >5 MΩ at 500 V
• Dielectric strength: 2000 V at 50 Hz for 1 minute

The socket allows for both flush-mounted and surface-mounted installation, with vertical mounting orientation, and can be installed in universal boxes or specific Simon K45 and Simon 500 Cima boxes (with adapter). It supports a wide temperature range during installation, making it easy to mount under various site conditions.

• Mechanism dimensions: 45 x 45 mm
• Depth: 39 mm
• Installation temperature range: -5 to 60 ºC
• Heat resistance: +125 ºC
• Extinction: +850 ºC / 30 s

Maintenance is simple and requires no special care—just clean the surface with a soft, dry cloth, always avoiding abrasive products or those containing chlorine.

A socket outlet built to last—safe and reliable—meeting the demands of installers and professionals who seek quality without complications.

Choosing Simon K45 means opting for a well-executed installation from day one, ready to withstand daily use for years to come.
