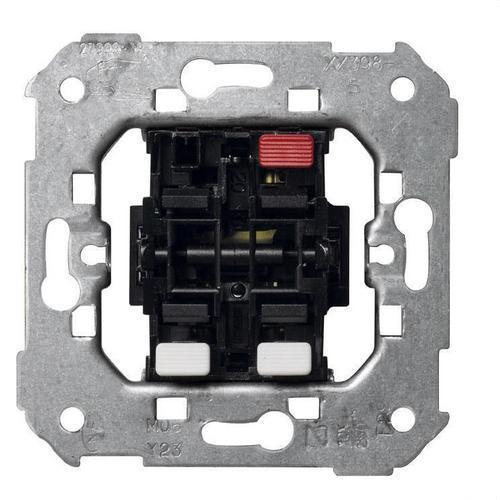

Set of 2 switches with quick terminal system simon 75

The Simon 75 2-Gang Single-Pole Switch Group is designed to offer independent control of two lighting circuits from a single mechanism, providing a practical, efficient, and safe solution for residential, commercial, or professional installations.

This mechanism supports a rated current of 10 AX at 250 V~ (50 Hz), making it suitable for standard lighting loads and ensuring stable, long-lasting operation even in high-use environments.

It features a quick insertion terminal system that enables fast installation, reducing assembly time and ensuring a reliable connection. This system accommodates conductors from 1.5 to 2.5 mm² with a stripping length of 11 mm, optimizing compatibility with standard installations.

The rocker operation design allows for precise and comfortable switching, guaranteeing smooth and reliable mechanical response. This type of actuation is ideal for continuous use, maintaining performance over time.

Manufactured with a combination of metal components and halogen-free thermoplastic materials, this switch offers enhanced safety in the event of fire by preventing flame propagation and reducing toxic smoke emissions, complying with the strictest regulations.

The group is fully compatible with multiple Simon ranges, including Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82 Concept, and Simon 82, allowing easy integration into different installation styles and decorative frames.

Its compact design, with dimensions of 74 x 74 x 31.3 mm and a depth of 32 mm, makes it easy to install in universal flush-mount boxes, suitable for both flush-mounted and surface installations.

Main technical features:

• Series: Simon 75
• Type: 2-Gang Single-Pole Switch Group
• Rated current: 10 AX
• Rated voltage: 250 V~
• Frequency: 50 Hz
• Operation type: Rocker
• Mechanism type: Pivot
• Material: Metal and halogen-free plastic
• Number of contacts: 3
• Number of wires: 4
• Accepted wire section: 1.5 – 2.5 mm²
• Required stripping: 11 mm
• Dimensions: 74 x 74 x 31.3 mm
• Depth: 32 mm
• Protection rating: IP21
• Compatibility: Simon 75, 82 Detail, 82 Nature, 82 Concept
• Installation: Flush-mounted and surface
• Installation orientation: Horizontal
• Fixing: Screws
• Connection type: Quick terminal
• Operating temperature: 5 – 40 ºC
• Storage temperature: -25 – 50 ºC
• Standard: EN 60669-1

Package contents:

• 2-gang switch mechanism

Notes:

• Independent control of two circuits
• Quick insertion connection system
• Compatible with multiple Simon series
• Fast and safe installation

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive products
• Avoid products containing chlorine

A reliable and practical solution for those looking to optimize lighting control without compromising on quality or ease of installation.
