Set of 2 white blind switches with electrical interlock system Simon 27 Play

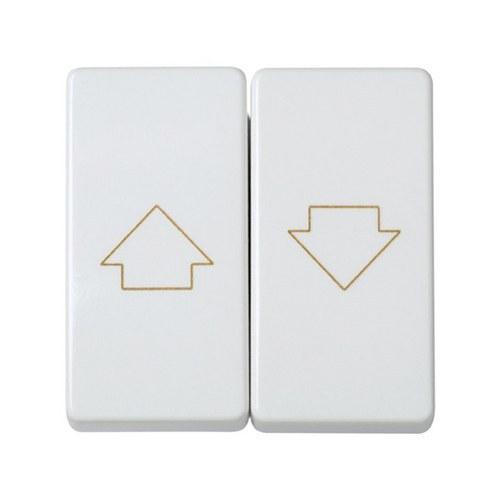

The Simon 27 Play 2-Button Switch Group for Electric Blinds is a practical and safe solution for controlling electric blinds in all types of installations. Designed to provide comfortable and reliable operation, it allows intuitive raising and lowering of the blinds thanks to its rocker mechanism and engraved identification on the keys.

This mechanism features a safety electric interlocking system that prevents simultaneous activation of both buttons, avoiding misuse and protecting the system. This makes it especially suitable for high-traffic areas such as offices, educational centers, hospitals, or collective facilities.

Manufactured with metal components and halogen-free insulation, along with a high-quality thermoplastic cover, it ensures durability, safety, and excellent performance under continuous use. Its compact 45 x 45 mm design allows for seamless aesthetic integration into any environment, maintaining the distinctive visual consistency of the Simon 27 Play series.

The mechanism is suitable for both surface and flush mounting, offering great versatility for new projects or renovations. Additionally, it is compatible with a wide range of Simon frames, making it easy to adapt to different configurations and decorative styles.

• Two-button group for electric blind control
• Electric interlocking system prevents simultaneous operation
• Rocker operation with up and down engraving
• Rated current: 10 A
• Voltage: 250 V~
• Supported cable section: from 1.5 to 2.5 mm
• Double version for a single element
• Protection rating: IP20
• Operating temperature: 5 to 40 ºC
• Storage range: -25 to 50 ºC
• Quick terminal connection type
• Required cable stripping: 11 mm

• Compatible with Simon 27 Play, 27 Neos, 27 Scudo, Simon 27, 27 Centralizaciones, and Simon 44 Aqua frames
• Installable in universal, American, and centralization flush-mount boxes
• Suitable for horizontal installation depending on the selected frame

For proper maintenance, it is recommended to clean the mechanism with a soft, dry cloth, avoiding abrasive products or cleaners containing chlorine to preserve the white finish in perfect condition.

A reliable and functional option for those seeking safe blind control without sacrificing the quality and design of a leading brand like Simon.
