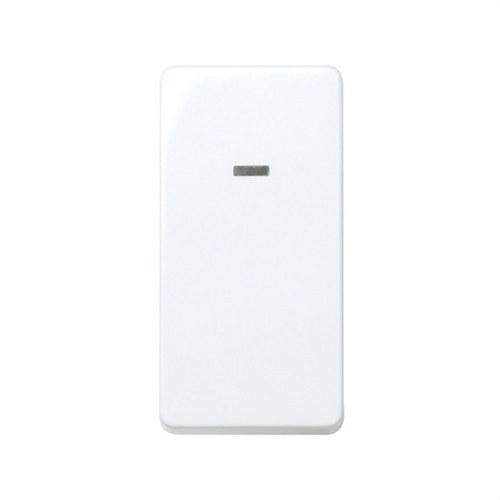

Single-pole switch 10 AX 250V half element with built-in pilot and quick connection white Simon 27 Play

The Simon 27 Play single-pole switch, half-module with built-in pilot light is a practical and safe solution for controlling electrical circuits in all types of installations. Designed to offer simple and reliable operation, this rocker mechanism allows you to easily turn lighting on and off, and features an illuminated indicator to help locate the switch in low-visibility conditions.

This switch belongs to the renowned Simon 27 Play series, a collection designed to provide functional and versatile solutions that adapt to different decorative styles and installation needs. Thanks to its compact half-module design, it optimizes space within compatible frames from the series.

The mechanism features quick-connect terminals, making installation easier and faster by allowing secure conductor connections without complex processes. It is designed to accommodate cable sections between 1.5 and 2.5 mm², ensuring reliable installation in both residential and professional settings.

Manufactured with metallic elements insulated with halogen-free thermoplastic, it provides greater safety in the event of fire by reducing the emission of toxic gases. The cover plate is made of thermoset plastic, ensuring resistance and durability for continuous use.

The integrated pilot light makes it easy to locate the switch in dark or dimly lit spaces. If the indicator needs to be replaced, the mechanism is compatible with reference 2700802-037.

Main features:

• Series: Simon 27 Play
• Type of mechanism: single-pole rocker switch
• Format: half-module
• Current rating: 10 AX
• Nominal voltage: 250 V~
• Built-in indicator light
• Indicator consumption: 0.55 mA
• Supported cable section: 1.5 to 2.5 mm²
• Connection type: quick-connect terminals
• Insulation material: halogen-free thermoplastic
• Thermoset plastic cover plate
• Finish: white
• Dimensions: 22.5 x 45 mm
• Protection rating: IP20
• Version: individual

Compatibility:

• Simon 27 Play frames
• Simon 27 Neos
• Simon 27 Scudo
• Simon 27
• Simon 27 Centralizations
• Simon 44 Aqua

Installation:

• Can be installed in universal, American, centralization, and compact flush-mount boxes
• Installation type: suitable for surface or flush mounting
• Installation orientation: horizontal or vertical
• Required cable stripping: 11 mm
• Fixing system: Simon 27 claw

Operating conditions:

• Operating temperature: 5 to 40 ºC
• Storage temperature range: -25 to 50 ºC

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive products or cleaners containing chlorine

This switch is a reliable and functional solution for lighting control in any type of space, combining easy installation, safety, and a discreet design that fits perfectly in modern installations.

It is the type of mechanism you install once and it works for years without worries, providing convenience and a clean finish in any room.
