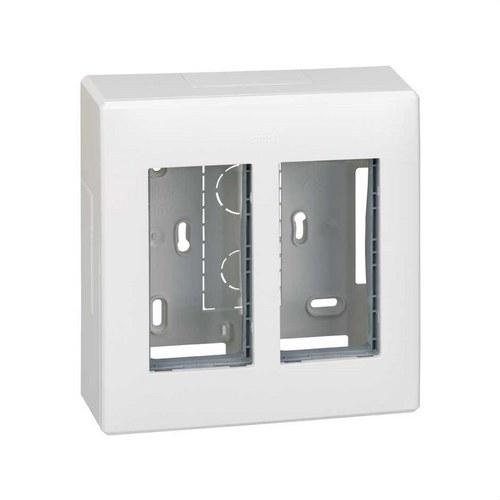

Surface-mounted wall box for 2 double elements white Simon 500 Cima

The Simon 500 Cima Surface Wall Box for 2 Double Elements (ref. 51000002-030) is the ideal solution for surface installations that require durability, capacity, and a clean aesthetic. Designed in a white RAL 9003 finish, it easily integrates into any environment, whether residential or professional.

This version is designed for 2 double elements (4 modules), providing a solid and secure base for housing mechanisms from the Simon 500 Cima series. Its functional design allows for an organized and efficient installation, especially in spaces where flush mounting is not desired or possible.

Made from high-quality plastic and compliant with UNE-EN 60.670-1:2006 standards, it ensures electrical safety and mechanical resistance. Additionally, it features an IK07 impact rating and an IP4X protection degree, providing effective protection against the entry of solid objects.

Main technical features:

• Series: Simon 500 Cima
• Version: 2 double elements
• Number of modules: 4
• Dimensions: 160 x 167 x 59 mm
• Depth: 50 mm
• Finish: White RAL 9003
• Material: Plastic
• Protection degree: IP4X
• Impact rating: IK07
• Maximum working temperature: +60ºC
• Installation temperature range: -5ºC to +60ºC
• Heat resistance: +125ºC (IEC 60695-10-2)
• Glow wire test: +850ºC / 30 seconds (GWFI)
• Dielectric strength: 2000 V at 50 Hz for 1 minute without breakdown
• Insulation resistance: >5 MΩ at 500 V

Includes 1 grounding terminal and offers multiple cable entry options:

• 5 side entries
• 6 holes for clamps
• 1 pre-punched hole 40 x 80 mm
• 1 pre-drilled hole Ø20 mm
• 1 pre-punched hole Ø25 mm

Electromagnetic immunity for VDM wiring is ensured by the included metal partition, which is installed in the designated slots in the box, providing greater safety and stability to the installation.

Compatible with Simon 500 Cima and Simon 27 Play / Simon K45 mechanisms using specific adapters, and combinable with the Simon trunking range, expanding its integration possibilities in more complex projects.

Installation is done using the supplied screws, ensuring a firm and secure wall attachment. Additionally, the frames can optionally be screwed in for extra fastening if required.

Package contents:

• Surface box
• Metal partition
• Grounding cable
• Fixing plugs
• Screws
• Installation manual

For maintenance, simply clean with a soft cloth slightly dampened with soapy water. The use of abrasive cleaners or products containing chlorine is not recommended.

A practical, durable option perfectly suited for professional installations that require quick assembly, safety, and a refined appearance. A reliable solution that makes on-site work easier and guarantees a long-lasting result.
