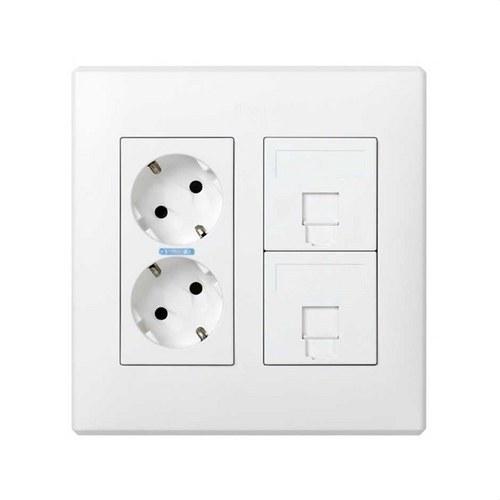

Surface or flush-mounted wall box kit for 2 double elements with 1 double socket, 2 plates for 1 RJ45 white Simon 500 Cima

The Simon 500 Cima wall box kit for 2 double elements is a complete solution designed to integrate electrical and data connections at a single installation point. This set includes a double socket outlet for standard power and two plates prepared for RJ45 connectors, providing a practical and organized system for workstations, offices, professional spaces, or home environments with connectivity needs.

This kit belongs to the Simon 500 Cima series, a range specially developed to offer maximum connectivity and flexibility in electrical, voice, and data installations. Thanks to its modular design, it allows the integration of different types of connections in a single unit, making cable management easier while maintaining a clean and professional look.

The set incorporates a double Schuko socket capable of supporting up to 16 amperes and 250 V, making it a suitable solution for safely powering various electrical devices. Additionally, the data plates are designed to accommodate RJ45 connectors using the Keystone clipping system, widely used in structured cabling installations.

The connection system supports multiple Keystone formats, providing broad compatibility with connectors from different manufacturers and facilitating integration into existing network installations.

Among the most notable technical aspects of this kit is the use of self-extinguishing, halogen-free thermoplastic materials. This type of material offers significant safety advantages:

• Does not propagate flames in case of fire
• Reduces the emission of toxic fumes
• Improves safety in enclosed spaces or areas with extensive cabling

The set also includes a metal partition that separates electrical wiring from voice and data cabling. This separation helps ensure the electromagnetic immunity of the communications system, preventing interference and ensuring proper network operation.

The installation system is designed to make the installer’s job easier thanks to the cut connection system (1 click®), allowing for quick and secure connections.

Main features:

• Series: Simon 500 Cima
• Product type: Wall kit for electrical and data connectivity
• Configuration: 2 double elements
• Color: White
• RAL: 9003
• Material: Plastic with metal components
• Dimensions: 157 x 164 x 46 mm
• Depth: 46 mm
• Protection rating: IP20

Kit composition:

• 1 double Schuko socket for standard power circuit
• 2 plates for RJ45 connectors
• Metal separation partition
• Grounding cable
• Installation manual

Electrical specifications:

• Rated current: 16 A
• Rated voltage: 250 V~
• LED consumption indicator: 0.55 mA
• Insulation resistance: >5 MΩ at 500 V
• Dielectric strength: 2000 V at 50 Hz for 1 minute without breakdown

RJ45 connector compatibility (Keystone format):

• Simon
• AMP Netconnect
• Brand-Rex
• Systimax
• ADC Krone KM8 Keystone
• Belden CDT Giga Flex Keystone
• General Cable
• Molex
• Panduit Netkey
• Ortronics Clarity TechChoice Keystone
• RIT
• Other manufacturers with Keystone format

Additional technical data:

• Number of modules: 4
• Number of connectors: 2
• Supported cable section: from 1.5 to 2.5 mm²
• Plate type: Flat
• Mechanism type: Insertion
• RJ45 connector: not included
• RJ45 adapter module: included in the plates

Operating conditions:

• Maximum working temperature: +60 °C for surface installation
• Maximum temperature for flush installation: +90 °C
• Temperature range during installation: -5 °C to +60 °C
• Heat resistance: +125 °C (according to IEC 60695-10-2)
• Glow wire test: +850 °C for 30 seconds

Installation:

• Installation type: flush-mounted or surface-mounted
• Compatible with Simon 500 Cima enclosures
• Installation orientation: vertical
• Direct clipping fixation
• No tools required for fixation
• Cover, plate, and socket removal only with a tool

Notes:

• To complete the installation, combine with:
  • Flush-mount box ref. 51020102-039
  • Surface box base ref. 51050002-030

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive cleaners or products containing chlorine

This Simon 500 Cima kit allows you to centralize power supply and network connections at a single point, making installations organized and ready for today’s technological environments.

In offices, workstations, or home spaces with computer equipment, having an integrated solution like this helps keep cabling well organized and ready to connect everything you need easily and safely.
