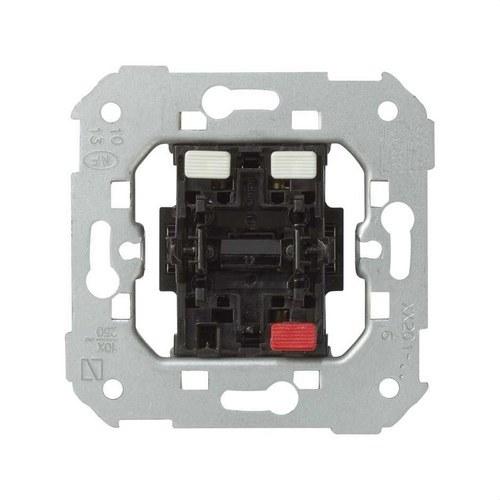

Switch with quick terminal system Simon 75

The Switch with Quick Connection System Simon 75 (ref. 75201-39) is a high-quality mechanism designed to facilitate fast and secure electrical installations. With a current rating of 10 AX and a voltage of 250 V~, this switch combines efficiency and reliability in a single device, being compatible with Simon 75, Simon 82 Detail, Simon 82 Nature, Simon 82, and Simon 88 frames.

Thanks to its quick connection system, installation is easy and fast: simply insert and tighten the mechanism for a secure fit. Additionally, it offers the option to implement a signaling function using a signal support and key with a viewer, ideal for environments that require visual indication of the circuit status.

Key technical features:

• Compatibility: Simon 75 and Simon 82 frames (various series)
• Current rating: 10 AX
• Nominal voltage: 250 V~
• Frequency: 50 Hz
• Mechanism type: pivoting
• Protection: IP21
• Number of contacts: 3
• Number of wires: 3
• Supported wire section: 1.5 – 2.5 mm²
• Cutout dimension: 40 mm
• Mechanism depth: 39 mm
• Operating temperature: 5 - 40 ºC
• Storage range: -25 - 50 ºC
• Material: metal and halogen-free thermoplastic
• Version: single

Installation and maintenance:

• Installation orientation: horizontal
• Installation type: suitable for flush and surface mounting
• Fixing type: screws
• Terminal connection type: quick (push-in)
• Cover removal: only with a tool
• Recommended wire stripping: 15 mm

This Simon 75 switch stands out for its robust and compact design, ideal for installations where speed, safety, and durability are required, integrating perfectly into any environment with Simon 75 or 82 frames.

Simplify your installations and add efficiency to your projects with the quality and reliability that Simon guarantees in every mechanism.
