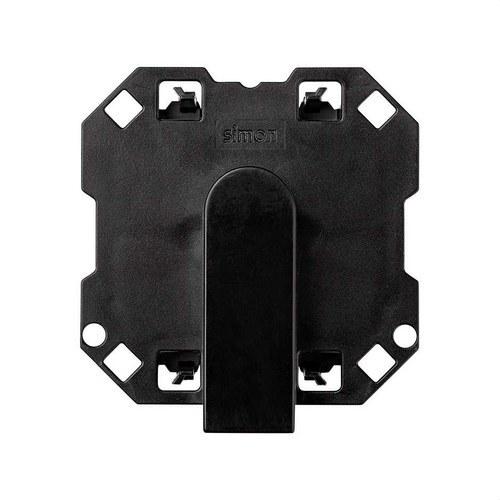

Wide cable outlet with clamping bracket for wire from 1.5mm to 2.5mm Simon 100

The Wide Cable Outlet with Clamping Bracket Simon 100 (ref. 10002801-039) is a practical and safe solution for electrical installations that require a clean and professional finish. Integrated into the innovative Simon 100 series, it combines technical functionality with modern aesthetics to suit any space, whether in residential or public environments.

Designed for 400 V~ power supply, this cable outlet features a screw terminal system that ensures a firm and secure connection. It also includes a clamping bracket, allowing the cable to be properly secured and preventing unwanted tension or displacement.

It supports cable sections from 1.5 to 2.5 mm², offering versatility for different types of installations. Manufactured with high-quality metal components and halogen-free thermoplastic insulation, it provides enhanced safety and resistance under normal usage conditions.

Main technical features:

• Series: Simon 100
• Mechanism type: cable outlet
• Version: single
• Number of elements: 1 element
• Power supply / Voltage: 400 V~
• Supported cable section: 1.5 – 2.5 mm²
• Terminal connection type: screw
• Protection rating: IP20
• Operating temperature: 0 – 40 ºC
• Manufactured with halogen-free thermoplastic insulation
• Certification: CE

Installation and compatibility:

• Compatible with Simon 100 frames
• Installable in universal flush-mounted boxes
• Installation type: suitable for flush mounting
• Includes mechanism and instructions

The Simon 100 series stands out for its revolutionary design and its ability to adapt to new lifestyles, providing technical solutions that enhance everyday experiences. This cable outlet is a perfect example: functionality, safety, and aesthetics in a single piece.

An essential detail for achieving a tidy, safe installation with a professional finish that makes a difference in any project.
