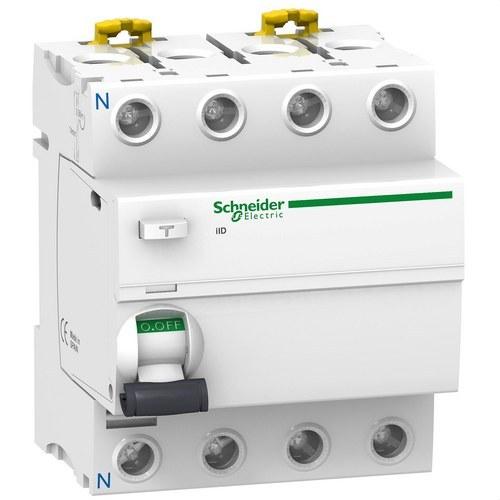

Acti9 iID Differential 4P 100A 300mA AC

The Schneider Electric Acti9 iID 4P 100A 300mA AC residual current circuit breaker is an advanced and reliable solution for protecting both domestic and industrial installations. This high-quality device, designed for automatic disconnection in the event of earth leakage, protects against electric shocks and the risk of fires, providing enhanced safety in daily use.

This 4-pole (4P) model, with a rated current of 100 A and a sensitivity of 300 mA, is ideal for installation in alternating current (AC) networks. Its AC type protection class makes it the right choice for safeguarding against earth leaks in electrical installations operating between 380 VAC and 415 VAC, with a frequency of 50 or 60 Hz. Additionally, it features residual current tripping technology independent of voltage, ensuring its effectiveness in various network conditions.

Technical Features:

• Rated current (In): 100 A
• Earth leakage sensitivity: 300 mA
• Rated breaking capacity: 1500 A
• Conditional short-circuit current: 10 kA
• Electrical durability: Up to 10,000 cycles
• Mechanical durability: Up to 20,000 cycles
• Rated insulation voltage (Ui): 500 V AC
• Impulse withstand voltage (Uimp): 6 kV

One of the standout features of this residual current circuit breaker is its Visitrip and VisiSafe indicator system. The former, with a mechanical indicator on the front of the device, allows for quick identification of which breaker has tripped due to a fault, reducing intervention and repair time. Meanwhile, the VisiSafe indicator confirms the complete opening of the poles, ensuring safe maintenance in downstream installation areas.

This residual current circuit breaker is manufactured in white (RAL9003), and its compact dimensions (72 mm wide, 91 mm high, and 73.5 mm deep) make it suitable for installation in electrical panels via DIN rail mounting. Furthermore, its modular design allows for easy integration into existing electrical systems, occupying a space of 8 modules of 9 mm each.

Additional Benefits:

• Regulatory compliance: Complies with EN/IEC 61008-1 standard, ensuring its safety and efficiency under international standards.
• Protection rating: IP20 when outdoors, increasing to IP40 when installed inside a modular cabinet, in accordance with IEC/EN 60529 standard.
• Wide temperature range: Operates in temperatures from -5 °C to 60 °C, with an extended storage range from -40 °C to 85 °C, ensuring performance in extreme environmental conditions.

The Acti9 iID is also very robust, with mechanical resistance of up to 20,000 cycles and electrical resistance of up to 10,000 cycles, ensuring its long-term durability and reliability. Its terminals accommodate a wiring cross-section of up to 35 mm² in rigid cable and up to 25 mm² in flexible cable, with a tightening torque of 3.5 N.m, guaranteeing a secure and effective connection.

The Schneider Electric Acti9 iID 4P 100A 300mA is an excellent choice for those seeking an efficient, safe, and easy-to-install residual current circuit breaker. With its capability to protect against earth faults, combined with its Visitrip and VisiSafe indicators, it facilitates maintenance and enhances electrical safety in any type of installation.
