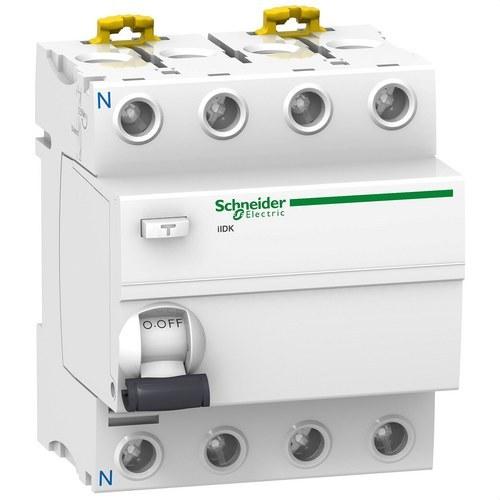

ID-K Differential 4P 25A 300mA Class AC

Residual Current Circuit Breaker ID-K, 4P 25A 300 mA, AC class, IP20, 50/60 Hz, with neutral position on the left.

Features instantaneous earth leakage protection delay, lever control, trip indicator, removable comb-type busbar installation, and can be mounted on a DIN rail support.

The residual current circuit breaker protects individuals from electric shocks and works in conjunction with the grounding of all installation elements.

Technical characteristics of the Residual Current Circuit Breaker ID-K 4P 25A 300 mA:

• 4 Poles, 25 Amperes
• Neutral position on the left
• Earth leakage sensitivity of 300 mA
• Instantaneous earth leakage protection
• Voltage-independent trip
• 440 V nominal insulation voltage
• 250 A surge current
• Lever control
• Adjustable clip mounting for DIN rail support
• Dimensions: 81 x 72 x 68 mm
