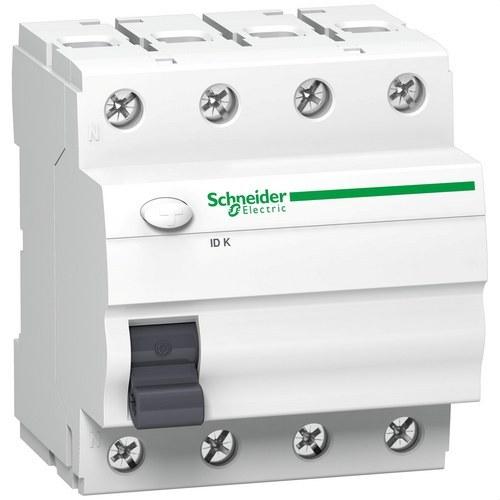

ID-K Differential 4P 40A 30mA Class AC with reference A9Z05440 from the brand SCHNEIDER ELECTRIC
ID-K Differential 4P 40A 30mA Class AC with reference A9Z05440 from the brand SCHNEIDER ELECTRIC
SCHNEIDER ELECTRIC

ID-K Differential 4P 40A 30mA Class AC

REF
A9Z05440
(0)
136.50 €
€136.50
€649.31
If you are a professional, you have an exclusive price. Discover it.
Three-phase residual current circuit breaker 40A, IDK series by Schneider Electric for home and tertiary sector protection.
  • High sensitivity 30 mA (0.03 A)
  • Standard class (AC)
  • Instantaneous action
Buy now and receive it between 3 and July 4
Express delivery
Earn +137 Sumis for purchasing this product
More about the product

Information about ID-K Differential 4P 40A 30mA Class AC

Schneider Electric ID K 4P 40A 30mA Residual Current Circuit Breaker, AC class.

Includes earth leakage protection, neutral position on the left, and has a rated current (In) of 40 A.

Suitable for AC networks, with earth leakage sensitivity of 30 mA, and instantaneous earth leakage protection delay.

Includes nominal breaking and making capacity Im 500 A/ Idm 500 A and a conditional short-circuit current rating With gL63: Inc 4.5 kA, with K60: Inc 6 kA.

It complies with EN 61008-1 standards. VDE quality labels.



Technical characteristics of the Acti9 4P 40A 30mA Schneider Electric Residual Current Circuit Breaker:

  • Series: Acti 9 ID K
  • Ref: A9Z05440
  • Number of poles: 4
  • Control type: Handle
  • Use in domestic and tertiary sector
  • Residual current trip type: voltage independent
  • Class "AC"
  • Operating voltage: 380...415 V AC 50 Hz
  • Rated current (In): 40A
  • Sensitivity (IΔn): 30mA
  • CE marking
  • Dimensions: 81x72x68mm
  • Standard: EN/IEC 61008-1



Are you setting up an Electrical Panel for your home?

Check out our “Automatic and Residual Current Devices” section to choose between different currents, poles, various accessories and ranges.

At Groupsumi, we offer the largest selection of Circuit Breakers so you can set up your entire electrical installation with just one click and home delivery.


Specifications
Manufacturer
SCHNEIDER ELECTRIC
Reference
A9Z05440
SKU
SCH269A6027
Object
Differential
Tension
400.00 - 415.00 V
Number of poles
Assembly
Fixed
Nominal current
40 A
Network type
CA
Protection rating
IP20
