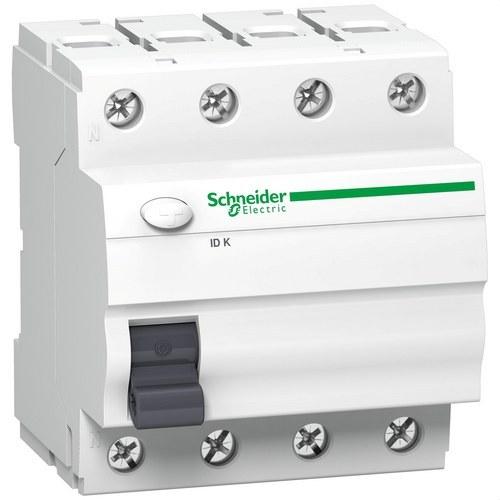

ID-K Differential 4P 63A 300mA with reference A9Z06463 from the brand SCHNEIDER ELECTRIC
ID-K Differential 4P 63A 300mA with reference A9Z06463 from the brand SCHNEIDER ELECTRIC
SCHNEIDER ELECTRIC

ID-K Differential 4P 63A 300mA

REF
A9Z06463
(0)
155.50 €
€155.50
€723.97
If you are a professional, you have an exclusive price. Discover it.
ID-K Residual Current Circuit Breaker, 4P, 63 A, 300 mA, AC class. Acti 9 range. Protection against earth leakage.
  • 4 Poles
  • 300 mA earth leakage sensitivity
  • Dimensions: 81 x 72 x 68 mm
Buy now and receive it between 18 and June 19
Express delivery
Earn +156 Sumis for purchasing this product
More about the product

Information about ID-K Differential 4P 63A 300mA

ID-K Residual Current Circuit Breaker, 4P, 63 A, 300 mA, AC class. Acti 9 range. Earth leakage protection. Neutral position on the left. Rated current (In) 63 A. AC network.

Earth leakage sensitivity 300 mA. Earth leakage protection delay Instantaneous. Earth leakage protection class AC class. Rated breaking and making capacity Im 500 A/Idm 500 A.

Conditional short-circuit current With gL63: Inc 4.5 kA, With K60: Inc 6 kA. Standards EN 61008-1. VDE quality labels


Technical features of the Schneider Electric ID-K 4P 63A 300 mA Residual Current Circuit Breaker:

  • 4 Poles
  • Neutral position on the left
  • Rated current of 63A
  • 300 mA earth leakage sensitivity
  • Handle control
  • Clip-on mounting for DIN rail
  • Dimensions: 81 x 72 x 68 mm
  • IP20 protection


Do you need more accessories for your electrical panel?

At Groupsumi, we are experts in electricity and offer the widest range so you can set up your electrical installation without needing to visit different places.

Visit our "Automatic devices, residual current devices and electrical protection" section and add what you need to your basket.

Specifications
Manufacturer
SCHNEIDER ELECTRIC
Reference
A9Z06463
SKU
SCH05C18A32
Object
Differential
Tension
400.00 - 415.00 V
Number of poles
Assembly
Fixed
Nominal current
63 A
Network type
CA
Protection rating
IP20
