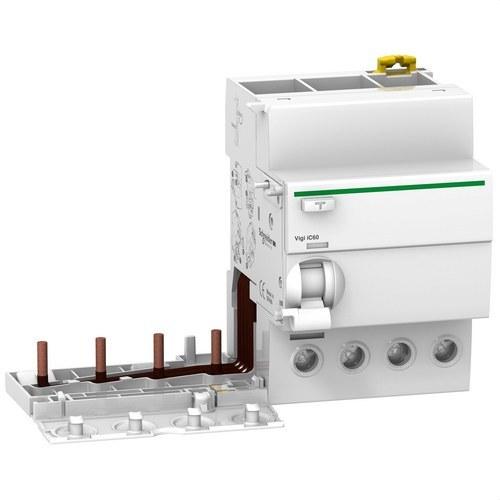

Vigi iC60 4P 63A 30mA AC Residual Current Circuit Breaker

The Vigi iC60 4P 63A 30mA AC residual current block from Schneider Electric is an advanced and effective solution designed to provide comprehensive protection in electrical installations. Part of the Acti9 range, this device is specifically designed to be combined with circuit breakers from the iC60 or Acti9 Reflex iC60 series, offering complete protection against short circuits, overloads, and earth leakage. It is an excellent choice for protecting both people and electrical installations from indirect contact electric shocks and other related hazards, such as fires caused by earth leakage.

This residual current block has a nominal current of 63 A and a sensitivity of 30 mA, ensuring quick disconnection in the event of an earth leakage, thus preventing potential electrical accidents. The Vigi iC60 is classified as type AC, meaning it is suitable for detecting alternating current leaks, making it ideal for most residential and commercial applications.

The Vigi iC60 uses voltage-independent residual current tripping technology, which ensures it continues to operate correctly even if there are fluctuations or drops in the power supply. This is crucial for maintaining constant protection in the installation, regardless of the conditions of the electrical network.

One of the most useful features of this residual current block is its VisiTrip indicator system. This system includes a window on the front face of the device that shows a red indicator if there has been a recent trip, greatly facilitating fault diagnosis in the electrical system. This function allows users or installers to quickly identify if the device has acted due to an anomaly, saving time in identifying and resolving issues.

The Vigi iC60 is designed to be mounted on a DIN rail, simplifying its installation and making it a modular solution that can be easily integrated into existing electrical panels. Its compatibility with the iC60 and Acti9 Reflex iC60 series ensures seamless integration, providing additional protection without the need to change the entire installation.

Technical Specifications

• Nominal current (In): 63 A.
• Earth leakage sensitivity: 30 mA (type AC).
• Number of poles: 4P, offering protection for four lines.
• Nominal operational voltage (Ue): 400-415 V AC at 50/60 Hz, compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1.
• Nominal insulation voltage (Ui): 500 V AC.
• Impulse withstand voltage (Uimp): 6 kV, ensuring protection against voltage spikes.
• Mounting capability: Clip adjustable on a DIN rail.
• Product compatibility: iC60, Acti9 Reflex iC60, and other components of the Acti9 range.
• Earth leakage protection: Type AC, ideal for residential and commercial installations.
• IP protection degree: IP20 (terminals), IP40 in modular enclosure.
• Operating temperature: From -5 °C to +60 °C, allowing use in a wide range of environments.
• Mechanical durability: Robust and impact-resistant design.
• Connections: Tunnel terminal for 1 rigid cable from 1 to 35 mm², or flexible from 1 to 25 mm² with or without terminal.
• Dimensions: 135 mm wide, 91 mm high and 73.5 mm deep, allowing integration in compact spaces.
• Weight: 0.245 kg, lightweight and easy to handle during installation.

Key Advantages

• Advanced earth leakage protection: With its 30 mA sensitivity, this residual current block offers quick and effective protection against current leaks that could be dangerous for people and installations.
• Installation and compatibility: DIN rail mounting and compatibility with the iC60 and Acti9 series make it an ideal modular solution for protecting circuits easily and efficiently.
• VisiTrip indicator: Allows quick identification of trips, improving diagnosis and reducing downtime in case of electrical faults.
• High durability and resistance: With a robust construction and protection against voltage spikes up to 6 kV, the Vigi iC60 is designed to last and operate reliably even in challenging conditions.

This residual current block not only protects against electric shocks but also helps prevent fires caused by earth leakage, ensuring a safer environment for both people and installations. Additionally, it complies with international standards EN/IEC 61009-1 and EN/IEC 61009-2-1, ensuring its reliability and compliance with the highest electrical safety standards.
