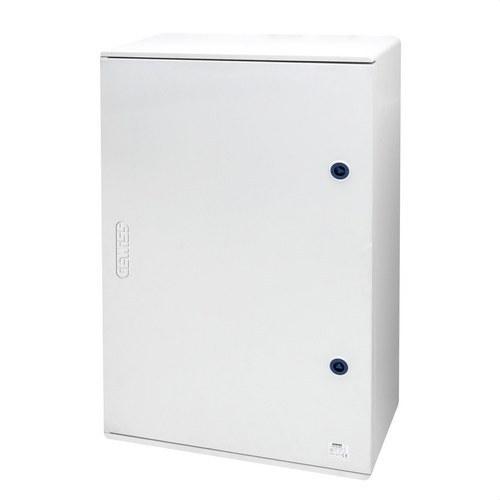

Polyester Enclosure with Blind Door and Lock 405x650x200 IP66

The Gewiss Series 68 CO Polyester Electrical Enclosure (reference GW46004F) is a robust and versatile solution designed to meet the electrification needs of construction sites and projects, both small and large scale. This enclosure is made from glass fibre reinforced polyester, providing high durability and resistance to demanding conditions, such as exposure to the elements and mechanical impacts. Additionally, it features a solid door and lock, ensuring the protection and security of the electrical components inside.

Compact and Durable Design:

The enclosure measures 405 mm wide, 650 mm high, and 200 mm deep, making it suitable for installations in industrial or construction spaces. Its IP66 protection rating ensures that the enclosure is completely sealed against dust ingress and protected against powerful water jets, making it ideal for outdoor installations or environments with harsh weather conditions.

Moreover, it has an IK10 impact resistance, meaning it can withstand severe mechanical impacts without structural damage, ensuring complete protection of the electrical equipment inside. This makes it ideal for applications on construction sites or in industrial environments where robustness is key.

Material and Environmental Protection:

The Gewiss Series 68 CO enclosure is made from high-quality materials that make it resistant to both weather and corrosive agents. The glass fibre reinforced polyester ensures excellent UV resistance, allowing it to maintain its structural integrity and colour over time, even when exposed to prolonged sunlight. Additionally, this enclosure is halogen-free, complying with EN 60754-2, making it safer in case of fire as it does not release toxic gases.

Certifications and Safety Standards:

This enclosure is certified according to EN 61439-1, EN 61439-2, EN 62208, and EN 60670-1, ensuring it meets European and international standards for safety and performance in electrical applications. It also has an insulation voltage of 1000 V, making it suitable for use in both AC and DC systems, ensuring the protection of electrical equipment against overvoltages.

Technical Features:

• Protection Rating: IP66, guarantees dust and water resistance.
• Impact Resistance: IK10, allowing it to withstand strong impacts.
• Operating Temperature: Range from -25°C to +60°C, ensuring functionality in a variety of climates and extreme conditions.
• Insulation Voltage: 1000 V, suitable for both AC and DC applications as per EN 62208 standard.
• Insulation Class: Class II, providing enhanced electrical safety by ensuring double or reinforced insulation.
• Dissipable Power: 118 W (A), ensuring adequate thermal management within the enclosure to prevent overheating.
• Material: Glass fibre reinforced polyester, offering high mechanical strength and durability, also halogen-free.
• Door: Solid door with lock for added security.

Versatility and Applications:

The Gewiss GW46004F enclosure is a versatile choice suitable for a wide range of applications. Specifically designed for construction and industrial projects, it can be used in both temporary and permanent electrification projects. Its resistance to weather and impacts makes it an ideal solution for outdoor installations or construction sites where additional protection against the elements and potential physical damage is required.

Additionally, the ability to configure it with sockets, circuit breakers, or fuses makes it highly adaptable to the needs of any electrical installation, whether low or medium voltage.

Advantages of the Gewiss Series 68 CO GW46004F Enclosure:

• High Impact and Weather Protection: With its IP66 and IK10 ratings, this enclosure ensures that electrical components are protected in demanding environments.
• Durable and Safe Material: The glass fibre reinforced polyester ensures excellent durability, UV resistance, and protection in corrosive environments, while its halogen-free construction provides increased safety in case of fire.
• Easy Installation and Maintenance: Its modular design and capability for both outdoor and indoor installation make it ideal for a wide range of applications, facilitating the management and maintenance of electrical systems.
