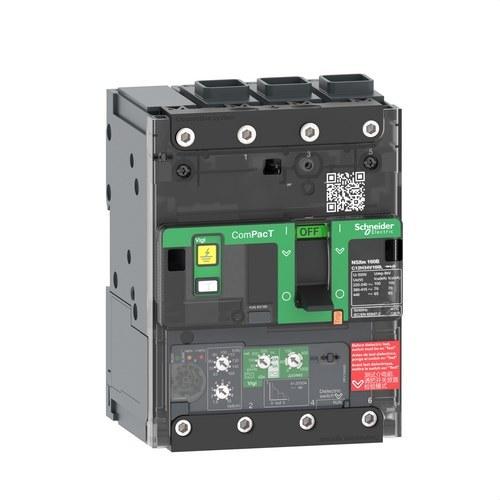

ComPacT NSXm160E Circuit Breaker 16kA AC 3P 160A Micrologic 4.1 ELINK

The Schneider Electric ComPacT NSXm160E 16kA AC 3P 160A circuit breaker with Micrologic 4.1 ELINK control unit is a compact and efficient solution for the protection of electrical installations in industrial and commercial environments. Designed with advanced technology, this circuit breaker stands out for its ability to optimise space without compromising performance, making it one of the smallest in its category on the market.

With a rated current of 160A at 40°C and a breaking capacity (Icu) of 16kA at 415V AC, the ComPacT NSXm160E ensures reliable and safe performance in networks up to 440V AC with frequencies of 50/60 Hz. This makes it suitable for a wide range of electrical applications requiring protection against short circuits and overloads. Its utilisation category A and ability to handle high interruption currents ensure the protection of electrical equipment and installations in critical situations.

This 3-pole circuit breaker is equipped with the innovative Everlink connection technology, guaranteeing a secure and stable connection even in conditions of vibration or thermal expansion. Everlink provides a solid contact and reduces the risk of loose connections or failures due to temperature changes, enhancing the overall safety of the electrical system. Additionally, the ComPacT NSXm160E includes the option of both DIN rail and plate mounting, offering greater flexibility in its installation and adaptability to different electrical panel configurations.

The ComPacT NSXm160E features an electronic control unit, Micrologic 4.1, offering advanced protection functions to ensure installation safety. Among the protection functions included are overload protection (L), short-time short-circuit (S), instantaneous short-circuit (I), and earth fault (R). This combination of protections allows for rapid detection and response to any anomaly in the electrical system, minimising the risk of equipment damage and improving operational continuity.

Key technical specifications:

• Rated current (In): 160 A at 40°C, suitable for protecting high energy consumption systems.
• Breaking capacity (Icu): 16kA at 380-415V AC, 10kA at 440V AC, 25kA at 220-240V AC, allowing for protection in a variety of electrical networks.
• Rated operational voltage (Ue): 440V AC, 50/60 Hz, ensuring compatibility with standard distribution networks.
• Mounting: Can be installed both on a DIN rail and on a plate, providing great flexibility in its installation.
• Everlink technology: More secure and stable connections, even in environments with vibration or thermal changes.
• Compact dimensions: With 108 mm width, 144 mm height, and 80 mm depth, this breaker is ideal for electrical panels where space is limited.
• Control unit: Micrologic 4.1, an advanced electronic solution offering total protection and monitoring of electrical conditions.
• Protection functions (LSoIR): Overload protection (L), instantaneous short-circuit (I), short-time short-circuit (S), and earth fault (R).
• International standards: Complies with IEC 60947, CCC, and EAC, ensuring its quality and compliance with global standards.

This 3-pole differential circuit breaker also features auxiliaries visible from the outside, facilitating its installation and operation. Furthermore, its compact dimensions make it an ideal solution for panels where space is a limited resource, without sacrificing protection capability or ease of use.

The ComPacT NSXm160E also stands out for its fixed mounting capability, providing greater stability and security in its long-term operation. Thanks to its robust design, this circuit breaker is suitable for a variety of applications requiring a high level of electrical protection and operational reliability.

Additional benefits:

• Advanced electronic trip technology: The Micrologic-based trip technology allows for greater precision and reliability in electrical system protection.
• Installation flexibility: Compatible with DIN rail and plate mounting, facilitating its integration into different types of electrical panels.
• Compact design: Its reduced size is ideal for electrical panels where space is limited.

The Schneider Electric ComPacT NSXm160E 16kA 3P 160A Micrologic 4.1 ELINK is an ideal choice for those seeking a compact and high-performance solution for the protection of complex electrical systems. With its advanced Everlink connection technology, installation flexibility, and advanced protection functions, this circuit breaker offers an excellent combination of safety, reliability, and efficiency for industrial and commercial applications.
