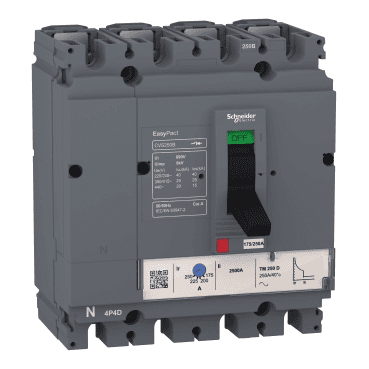

EasyPact CVS250B Circuit Breaker 25 kA at 415 VAC rating 250 A thermal-magnetic trip unit TM-D 4P 3r

The Schneider Electric EasyPact CVS250B 25kA 4P 3R 250A TM-D circuit breaker is a cost-effective and efficient solution for protecting electrical installations in small to medium-sized buildings. This model combines a high level of performance with features designed to optimise space and reduce operational costs, without compromising on reliability or safety.

With a breaking capacity (Icu) of 25kA at 415V AC and a rated current of 250A at 40°C, the EasyPact CVS250B is ideal for protecting electrical systems that require high protection against overloads and short circuits. The included thermal-magnetic control unit (TMD) provides adjustable thermal protection to prevent overloads and fixed magnetic protection to respond to short circuits, ensuring the system remains safe at all times against unexpected current variations.

The EasyPact CVS250B has been designed with a modular approach, facilitating its integration into existing electrical systems and allowing efficient installation in different types of electrical panels. This modular design not only optimises space in cabinets but also speeds up delivery times, facilitating the assembly and commissioning of the equipment. With compact dimensions of 140 mm in width, 161 mm in height, and 86 mm in depth, this circuit breaker fits perfectly into confined spaces, making it an ideal solution for buildings with space constraints.

One of the main advantages of the EasyPact CVS250B is its ability to adapt to standard power distribution applications in networks of up to 440V AC and frequencies of 50/60 Hz. This circuit breaker is designed to meet the highest international standards, including IEC 60947, CCC, and EAC regulations, ensuring it complies with the strictest safety and quality standards worldwide.

Key Technical Specifications:

• Rated current (In): 250A at 40°C, ideal for electrical systems with continuous loads in industrial or commercial applications.
• Breaking capacity (Icu): 25kA at 415V AC, with additional capacities of 40kA at 220/240V AC and 20kA at 440V AC, ensuring effective protection in various network conditions.
• Rated operational voltage (Ue): 440V AC 50/60 Hz, allowing use in a wide range of power distribution networks.
• TMD control unit (thermal-magnetic): Offers adjustable protection against overloads and short circuits, optimising safety in the operation of the electrical installation.
• Compact design: With 140 mm width, 161 mm height, and 86 mm depth, this circuit breaker is ideal for installations where space is a limited resource.
• Fixed mounting: Ensures stable and secure installation in electrical panels.

The EasyPact CVS250B circuit breaker is designed to meet the most demanding applications, providing high-performance protection in power distribution applications. This model is not only designed to withstand demanding conditions but also stands out for its durability, thanks to the use of high-quality materials and advanced manufacturing processes.

Additional Features:

• Easy to store and order: The modular design of EasyPact facilitates storage and inventory management, improving supply chain efficiency and enabling quick delivery to customers.
• Advanced protection: The TMD control unit offers comprehensive protection against overloads and short circuits, ensuring safe operation at all times.
• Compatibility with optional accessories: The EasyPact CVS250B circuit breaker is compatible with a variety of accessories, allowing the installation to be customised according to the specific needs of each project.

Key Benefits:

• Cost savings: Thanks to its modular design and ability to integrate efficiently into existing electrical systems, the EasyPact CVS250B significantly reduces installation and maintenance costs.
• Reliable protection: The adjustable thermal-magnetic technology ensures systems are effectively protected against overloads and short circuits, providing peace of mind at all times.
• Quick and easy installation: The compact and modular design facilitates assembly, reducing installation times and improving operational efficiency.

The Schneider Electric EasyPact CVS250B 25kA 4P 3R 250A TM-D circuit breaker is an ideal protection solution for small to medium-sized buildings that require a high level of safety and reliability in their power distribution systems. With its compact design, adjustability, and advanced protection, this circuit breaker is a cost-effective and efficient option to ensure operational continuity in a wide variety of electrical applications.
