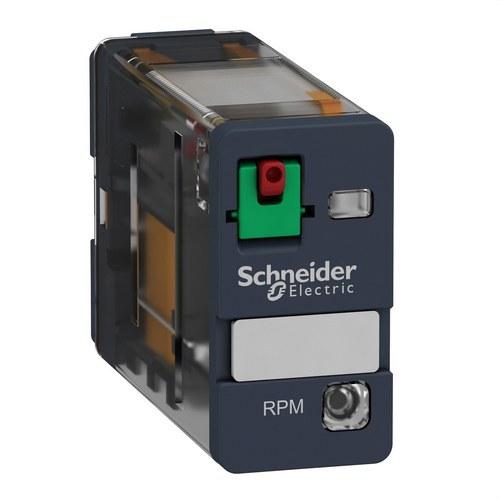

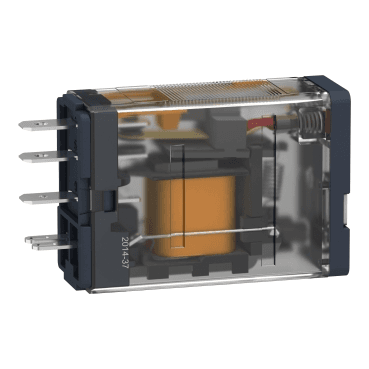

Plug-in Power Relay HARMONY Relay 15 A 1 NO NC with LED

The Schneider Electric Harmony RPM12P7 plug-in power relay is a reliable and versatile solution for controlling electrical circuits in industrial and commercial applications. Part of the Harmony range of electromechanical relays, this model is designed to handle high current loads, with a capacity of up to 15A, making it an ideal choice for a wide variety of uses, from motor control to automation applications.

The RPM12P7 features an SPDT (single pole double throw) switching contact, allowing it to switch between two circuits, offering flexibility in controlling electrical devices. The coil control voltage is 230V AC, with compatibility for frequencies of 50/60 Hz. The relay includes an LED indicator that provides clear signalling of the device's status, making it easy to monitor in low-light conditions or industrial environments.

The IP40 protection ensures that the relay is protected against the ingress of solid objects larger than 1 mm, ensuring its operation in controlled environments. The plug-in design allows for quick and easy installation, and the flat pin shape facilitates mounting on standard relay bases. Additionally, the product is reprogrammable, providing the ability to adapt to changes in system configuration or different applications.

Technical Features:

• Product Range: Harmony electromechanical relays.
• Product Type: Plug-in connection relay.
• Contact Configuration: 1 SPDT (single pole double throw) contact.
• Coil Control Voltage: 230V AC, with frequencies of 50/60 Hz.
• Current Capacity: 15A at temperatures from -40°C to 55°C.
• Contact Material: Silver-nickel alloy (AgNi), providing high durability and reliability in switching.
• LED Indicator: Allows for relay status signalling both day and night.
• Protection: IP40, suitable for environments protected against solid objects larger than 1 mm.
• Nominal Insulation Voltage: 250V according to IEC, 300V according to CSA and UL.
• Surge Voltage Resistance: 4kV (electrical durability of 1.2/50 µs).
• Electrical Durability: Designed to withstand a high number of operation cycles.
• Pin Shape: Flat, to facilitate installation on standard relay bases.

Product Advantages:

• High Reliability and Durability: The relay is designed to handle high currents and offers prolonged durability thanks to its high-quality contact materials.
• Flexible and Quick Installation: Its plug-in design allows it to be easily mounted in a wide variety of applications and enclosures, helping to reduce their size.
• Clear Signalling: The LED indicator facilitates monitoring of the relay's status, enhancing safety and control in industrial environments.

Recommended Applications:

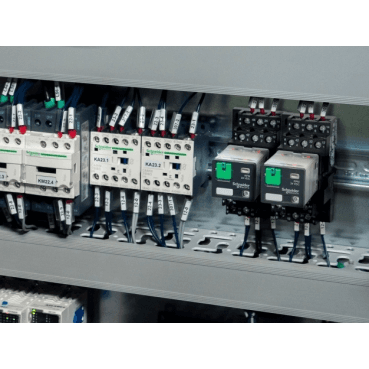

The Harmony RPM12P7 power relay is ideal for use in industrial automation systems, motor control, heating, ventilation and air conditioning (HVAC), and other applications that require handling currents of up to 15A. It is an excellent choice for control panels and electrical cabinets where a high-quality and easy-to-install relay is needed.

Regulatory Compliance and Certifications:

The relay complies with international safety and quality standards, including the CE mark and RoHS compliance standards, ensuring that the product is safe and environmentally friendly. It also has insulation voltage in accordance with IEC, CSA, and UL standards, providing an additional level of protection for users and electrical systems.

With the Schneider Electric Harmony RPM12P7 plug-in power relay, you can rely on a robust and versatile solution to meet the needs of electrical control in demanding industrial environments.
